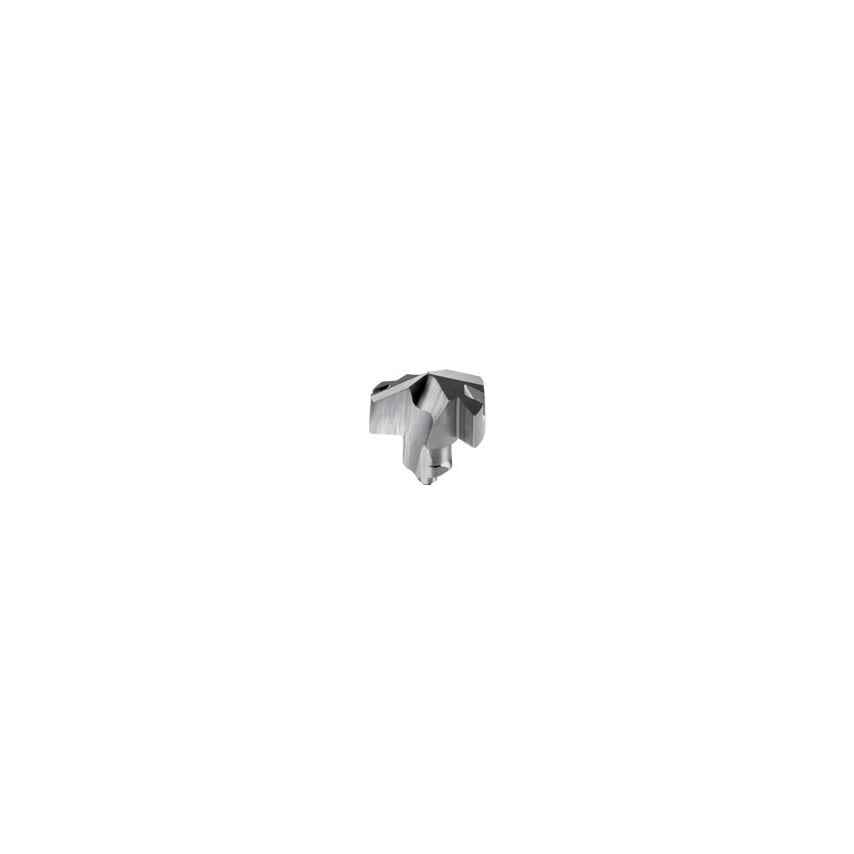

ICP : SUMOCHAM exchangeable DCN drill heads for carbon and alloy steel (ISO P materials). The drill head is designed with a honed cutting edge, available in increments of 0.1 mm.
Grade : IC908
A hard, fine grain substrate with excellent chipping resistance, combined with a new TiAlN PVD coating. Provides high wear and oxidation resistance. Recommended for a very wide range of materials applications and machining conditions.
ISO Range - P/M/K: (P15-P30)(M20-M30)(K20-K40)
ISO Range - H/S/N: (H10-H20)(S10-S25)
Grade or Coating Type: PVD
Coating Layers: TiAlN
| MFR Part No. | 5506637 |
| Series | Sumocham |
| Insert Size | 120 |
| ISO Cut | P15 to P30 |
| Diameter | 12mm |
| Material | HSS |
| Insert Style | ICP |
| Pack Quantity | 1 |
| Finish/Coating | TiAlN |
| Insert Type | ICP |
| Manufacturer Grade | IC908 |
| ISO Designation | ICP 120 |
