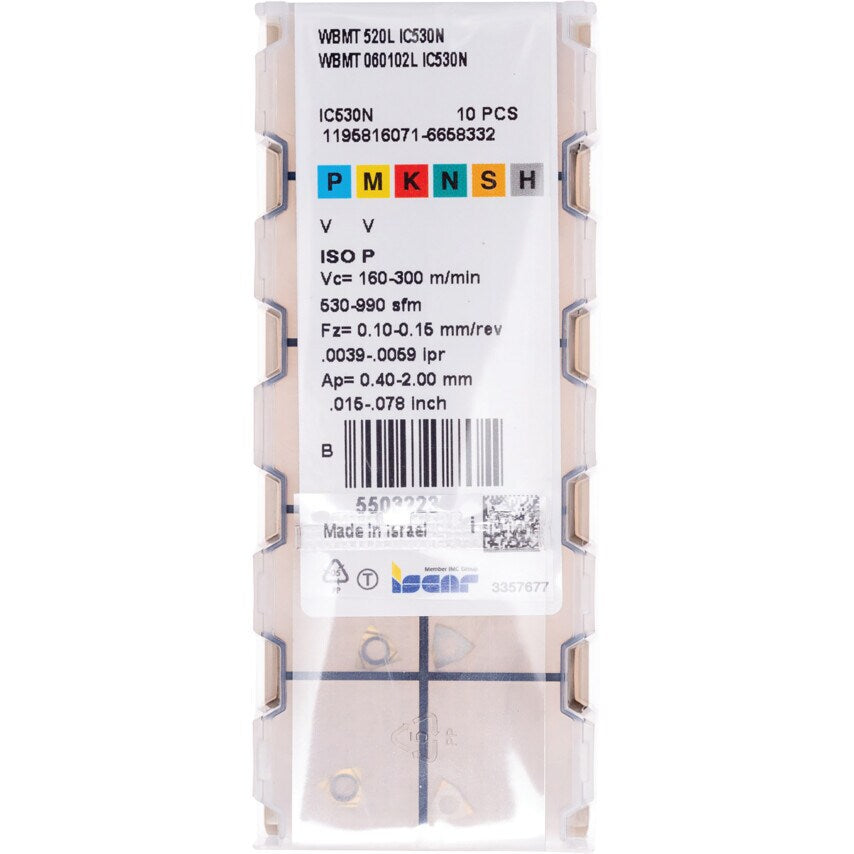

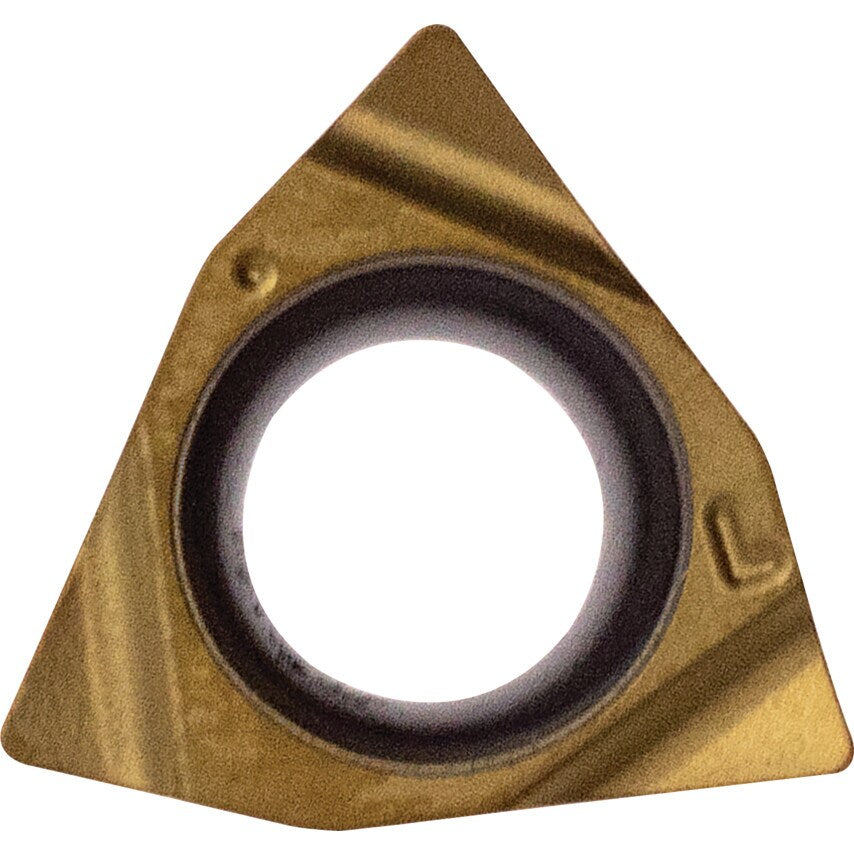

WBMT turning inserts 80 trigon insert 5 positive flank inserts with a ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
Features and Benefits
Cermet construction for rigidity and stability
TiCN & TiN PVD coated for increased wear resistance
Used in high speed semi-finishing and finishing applications with excellent surface finish
Specifications
Grade : IC530N
ISO Range - (P10-P30)(M10-M20)
Grade or Coating Type: PVD
Coating Layers: TiCN+TiN
Cermet construction
TiCN & TiN PVD coated
Typical Applications
Turning
Finishing
| Material Application | Stainless Steels | Steels |
| Insert Size | 020104 |
| Manufacturer Grade | IC530N |
| ISO Cut | M10 to M20 | P10 to P30 |
| Corner Radius | 0.2 |
| MFR Part No. | 5503223 |
| Material | Carbide |
| Cutting Direction | Left Hand |
| Finish/Coating | TiCN/TiN |
| Inscribed Circle | 3.97mm |
| Pack Quantity | 1 |
| Thickness | 1.59mm |
| Cutting Edge Length | 6.9mm |
| ISO Designation | WBMT 060102L |
| ISO Category | M | P |
| Shape | Trigon |
| Clearance Angle | 5\u00b0 |
| Insert Style | WBMT |
| ISO Category Grade | M | P |
