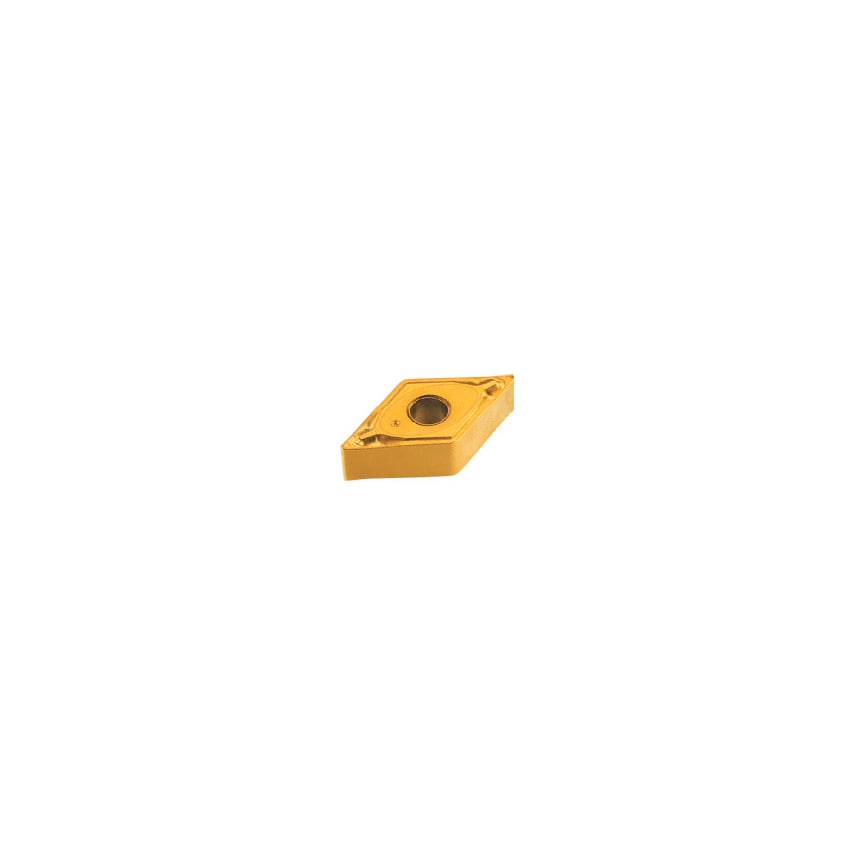

DNMG Turning Inserts
55 Rhombic Insert
Double-sided, negative (0) relief angle offering a strong edge for general applications, used for medium and finish cutting
Insert Grade IC9350
ISO Range -(P20-P45)(M15-M30)
Coating - CVD TiCN+alpha Al2O3+TiN
Good toughness and wear resistance. A tough substrate with a cobalt enriched layer
Chipbreaker : NF. Application Finish / Medium
| Clearance Angle | 0\u00b0 |
| ISO Category | M | P |
| Insert Style | DNMG |
| Inscribed Circle | 9.52mm |
| Manufacturer Grade | IC9350 |
| Material | Carbide |
| ISO Cut | M15 to M30 | P20 to P45 |
| Pack Quantity | 1 |
| Corner Radius | 0.2 |
| MFR Part No. | 5507610 |
| Chipbreaker | NF |
| ISO Designation | DNMG 110402-NF |
| Thickness | 4.76mm |
| Finish/Coating | TiCN+alpha Al2O3+TiN |
| Cutting Edge Length | 11.6mm |
| Insert Size | 110402 |
| Shape | 55\u00b0 Rhombic |
| ISO Category Grade | M | P |
| Material Application | Steels |
