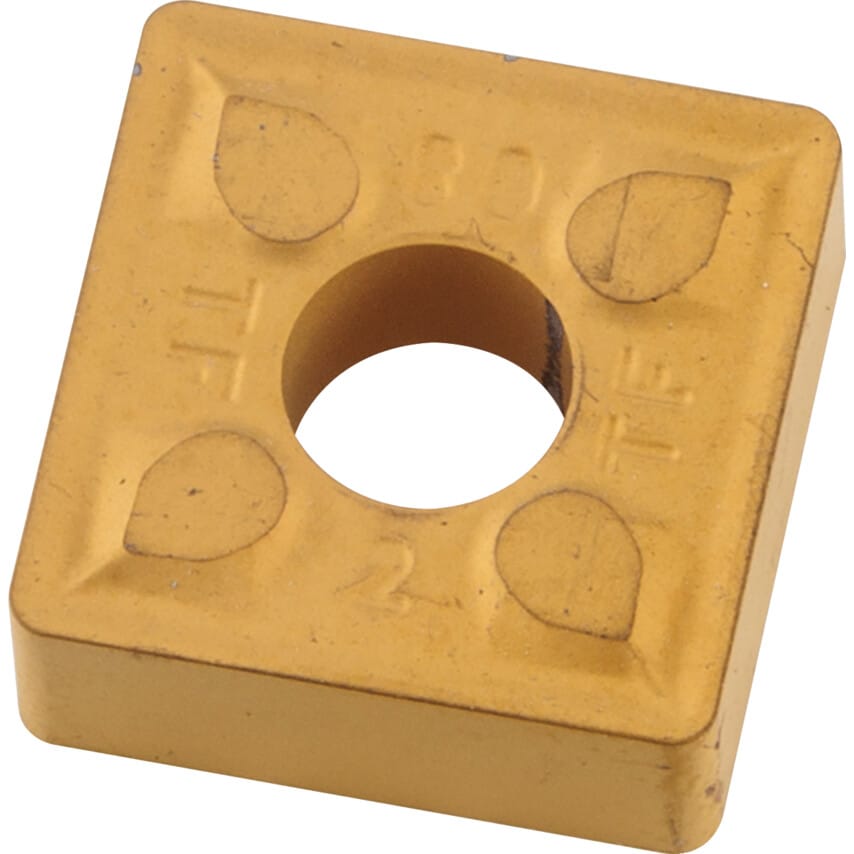

SNMG Turning Inserts
Square Insert
Double-sided square inserts, with negative (0) relief angle for Medium machining.
Used for steels, stainless steel and high temperature alloys.
Insert Grade IC9250
ISO Range - (P10-P35)(M05-M20)
Coating - CVD TiCN+alpha Al2O3+TiN
Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance.
Chipbreakers : TF , Application Medium
Chipbreakers : GN, Application Medium
| Inscribed Circle | 12.7mm |
| Insert Size | 120408 |
| Pack Quantity | 1 |
| ISO Designation | SNMG 120408-TF |
| Material | Carbide |
| Cutting Direction | Neutral |
| ISO Cut | M05 to M20 | P10 to P35 |
| Chipbreaker | TF |
| Manufacturer Grade | IC9250 |
| Cutting Edge Length | 12.7mm |
| ISO Category | M | P |
| Corner Radius | 0.8 |
| Thickness | 4.76mm |
| Finish/Coating | TiCN+alpha Al2O3+TiN |
| Shape | Square |
| ISO Category Grade | M | P |
| MFR Part No. | 5591816 |
| Material Application | Stainless Steels | Steels |
| Clearance Angle | 0\u00b0 |
| Insert Style | SNMG |
