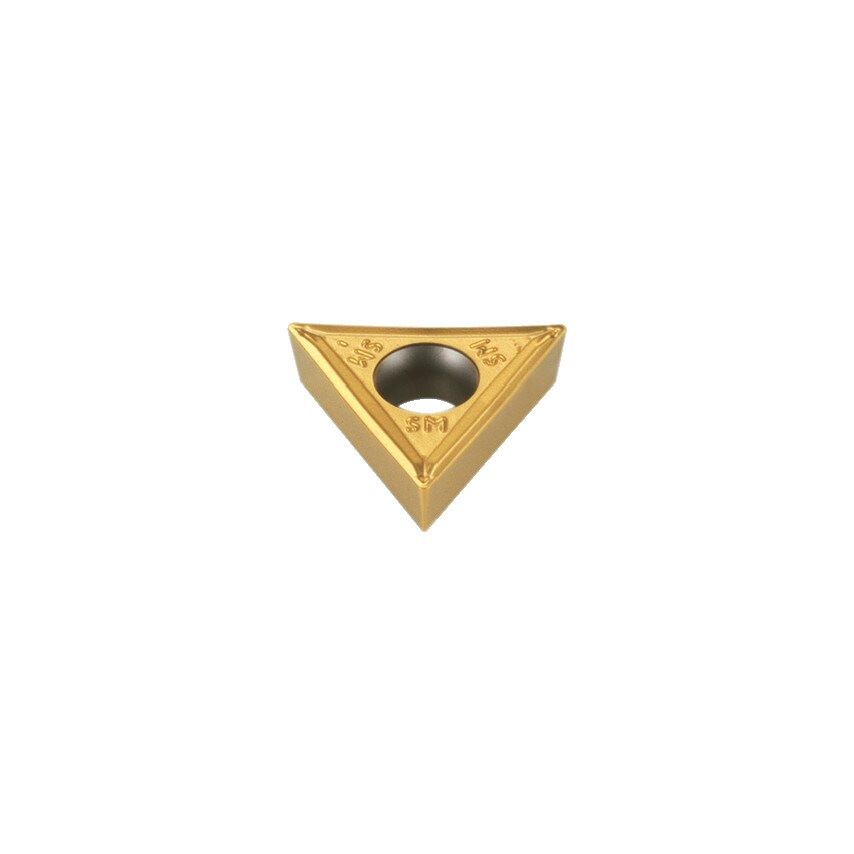

TCMT Turning Inserts
60 Triangular Insert
Single-sided, 7 relief angle for finish turning. Used for a wide range of materials, steel, stainless steel, cast iron and Heat resistant super alloys.
Insert Grade IC9250
ISO Range - (P10-P35)(M05-M20)
Coating - CVD TiCN+alpha Al2O3+TiN
Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance.
Chipbreaker : SM. Application Finish
| Cutting Edge Length | 16.5mm |
| Corner Radius | 0.4 |
| Clearance Angle | 7\u00b0 |
| Insert Size | 16T304 |
| Insert Style | TCMT |
| MFR Part No. | 5507286 |
| ISO Designation | TCMT 16T304-SM |
| Finish/Coating | TiCN+alpha Al2O3+TiN |
| Thickness | 3.97mm |
| ISO Cut | M05 to M20 | P10 to P35 |
| Material | Carbide |
| Material Application | Stainless Steels | Steels |
| Inscribed Circle | 9.525mm |
| Shape | Triangle |
| Cutting Direction | Neutral |
| Manufacturer Grade | IC9250 |
| ISO Category Grade | M | P |
| Chipbreaker | SM |
| ISO Category | M | P |
| Pack Quantity | 1 |
