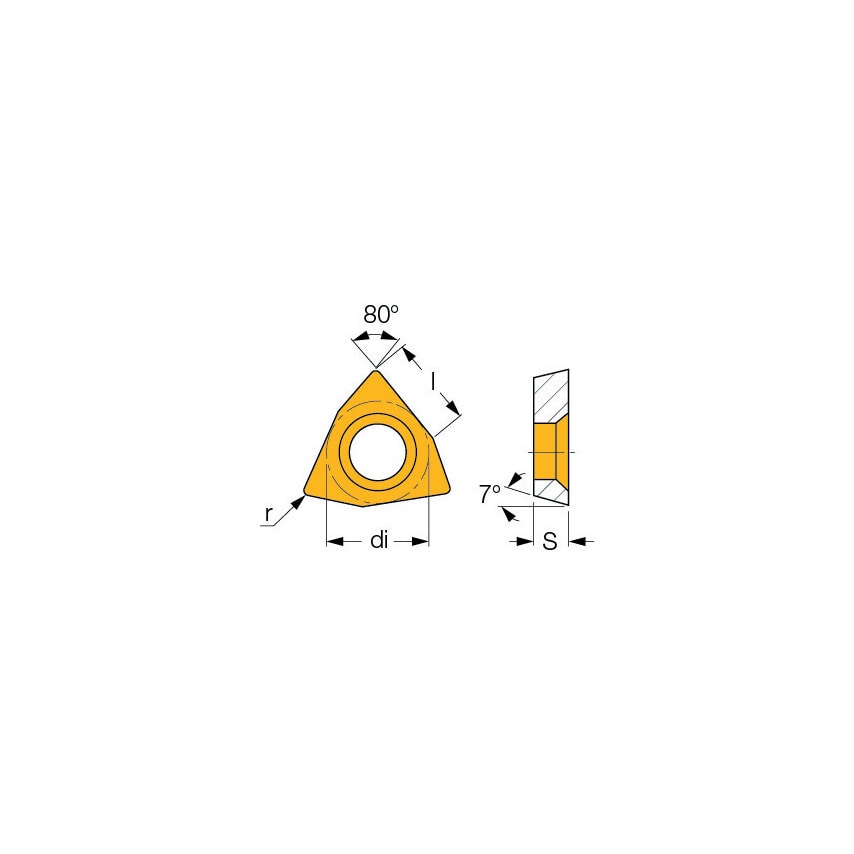

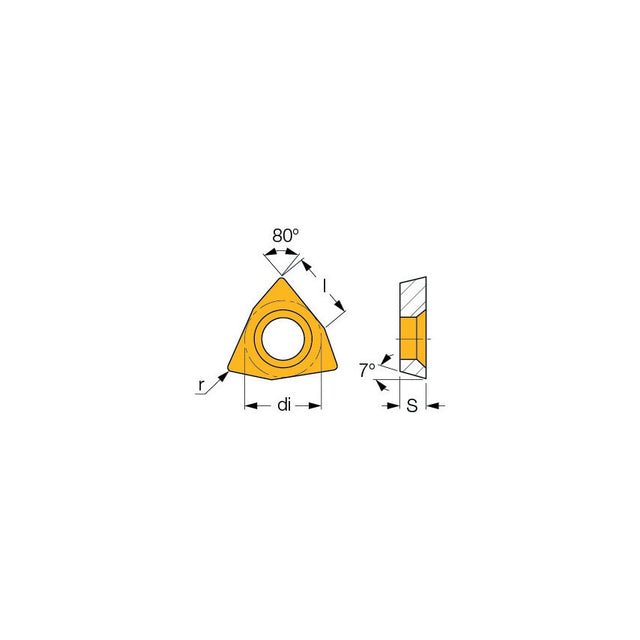

WNMG Turning Inserts
80 Trigon Insert
Double-sided inserts with negative (0) relief angle, offering a strong edge for general applications and varying depths of cut dependent on chipbreaker type across most materials.
Insert Grade IC8250
ISO Range -(P10-P35)(M05-M20)
Coating - CVD TiCN+Al2O3+TiN
A tough substrate with a cobalt enriched layer recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance.
Chipbreaker : GN . Application Medium
| Pack Quantity | 1 |
| Insert Size | 604 |
| Finish/Coating | Al2O3/TiCN/TiN |
| ISO Category | M | P |
| Chipbreaker | GN |
| Shape | Trigon |
| ISO Category Grade | M | P |
| Thickness | 4.76mm |
| Corner Radius | 0.8 |
| Material | Carbide |
| Insert Style | WNMG |
| ISO Designation | WNMG 060408-GN |
| ISO Cut | M05 to M20 | P10 to P35 |
| Manufacturer Grade | IC8250 |
| Material Application | Stainless Steels | Steels |
| Inscribed Circle | 9.52mm |
| Cutting Edge Length | 6.5mm |
| Clearance Angle | 0\u00b0 |
