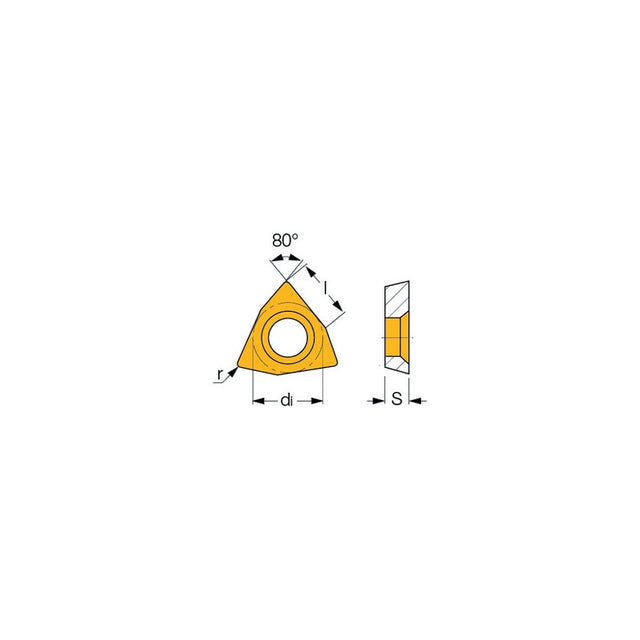

WNMG Turning Inserts
80 Trigon Insert
Double-sided inserts with negative (0) relief angle, offering a strong edge for general applications and varying depths of cut dependent on chipbreaker type across most materials.
Insert Grade IC807
ISO Range - (P10-P30)(M05-M20)(K10-K30)(H05-H15)(S05-S20)
Coating - PVD TiAlN+TiN
For machining of heat resistant alloys, austenitic stainless steel and hard steel. Low to medium cutting speeds
Chipbreaker : TF . Application Medium
| Material Application | Cast Iron | Hardened Steel | High-Temperature Alloys | Stainless Steels | Steels |
| ISO Category Grade | H | K | M | P | S |
| Insert Style | WNMG |
| Clearance Angle | 0\u00b0 |
| Thickness | 4.76mm |
| ISO Designation | WNMG 080408-TF |
| Shape | Trigon |
| Material | Carbide |
| Pack Quantity | 1 |
| Finish/Coating | TiAIN/TiN |
| Cutting Edge Length | 8.7mm |
| ISO Cut | H05 to H15 | K10 to K30 | M05 to M20 | P10 to P30 | S05 to S20 |
| ISO Category | H | K | M | P | S |
| Insert Size | 080408 |
| Corner Radius | 0.8 |
| Manufacturer Grade | IC807 |
| MFR Part No. | 5507751 |
| Chipbreaker | TF |
| Inscribed Circle | 12.7mm |
