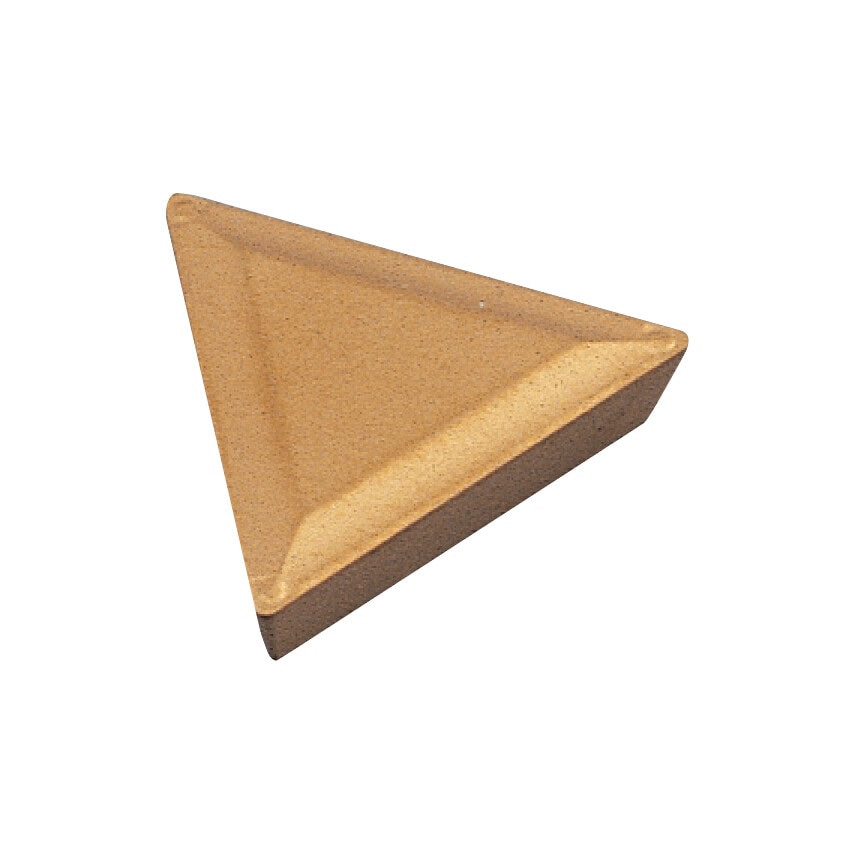

TPMR Turning Inserts
60 Triangular Insert
11 positive relief angle insert, for semi-finishing and finishing of most materials.
Insert Grade IC9250
ISO Range - (P10-P35)(M05-M20)
Coating - CVD TiCN+alpha Al2O3+TiN
Recommended for general use machining of steel in a wide range of conditions, featuring high toughness and wear resistance.
Chipbreaker : PF. Application Finish
| Insert Size | 160308 |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Clearance Angle | 11\u00b0 |
| Manufacturer Grade | IC9250 |
| Chipbreaker | PF |
| ISO Designation | TPMR 160308-PF |
| MFR Part No. | 5507014 |
| Material Application | Stainless Steels | Steels |
| Cutting Edge Length | 16.5mm |
| Pack Quantity | 1 |
| Finish/Coating | TiCN+alpha Al2O3+TiN |
| Material | Carbide |
| ISO Category | M | P |
| Thickness | 3.18mm |
| Corner Radius | 0.8 |
| Insert Style | TPMR |
| ISO Category Grade | M | P |
| ISO Cut | M05 to M20 | P10 to P35 |
| Inscribed Circle | 9.525mm |
