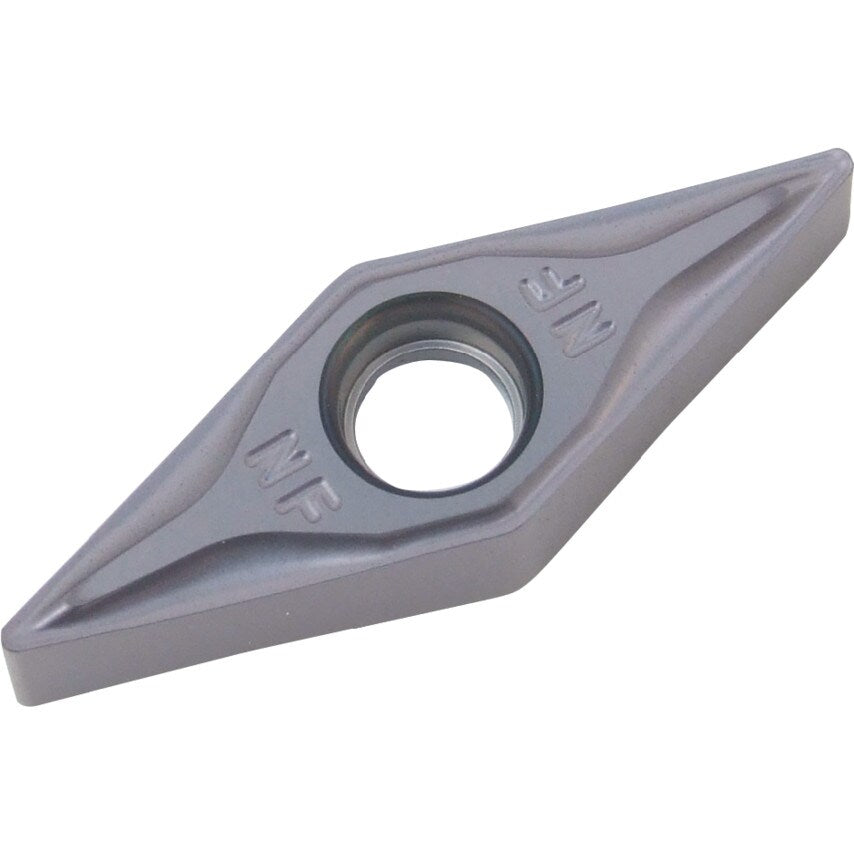

VNMG Turning Inserts
35 Rhombic Insert
Negative (0) relief angle, double-sided inserts. For semi-finishing and finish machining of most materials.
Insert Grade IC907
ISO Range - (P10-P30)(M05-M20)(K15-K30)(H05-H15)(S05-S20)(N05-N20)
Coating - PVD TiAlN+TiN
A tough sub-micron substrate, suitable for low-to-medium cutting speeds.For machining of heat resistant alloys, austenitic stainless steel and hard steel.
Chipbreaker: NF. Application Finish
| Insert Style | VNMG |
| Insert Size | 12T304 |
| ISO Designation | VNMG 12T304-NF |
| Inscribed Circle | 7.15mm |
| ISO Cut | K15 to K30 | M05 to M20 | P10 to P30 |
| MFR Part No. | 5504880 |
| ISO Category Grade | K | M | P |
| Thickness | 3.97mm |
| Corner Radius | 0.4 |
| ISO Category | K | M | P |
| Material | Carbide |
| Chipbreaker | NF |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.4mm |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Pack Quantity | 1 |
| Shape | 35\u00b0 Rhombic |
| Finish/Coating | TiAIN/TiN |
| Clearance Angle | 0\u00b0 |
| Manufacturer Grade | IC907 |
