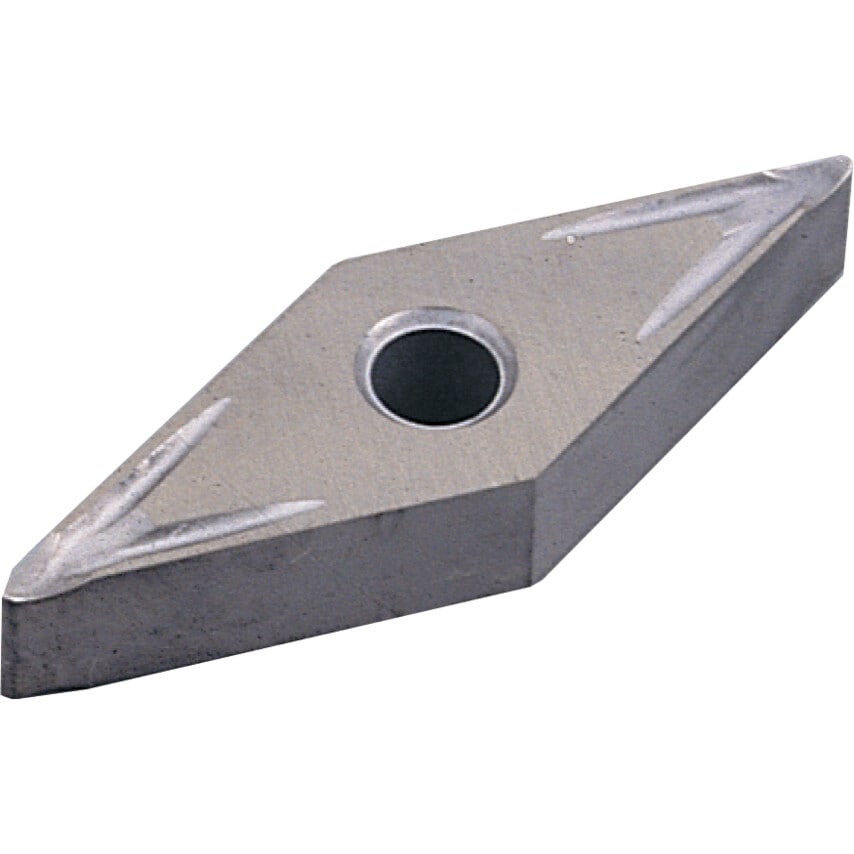

VNMG Turning Inserts
35 Rhombic Insert
Negative (0) relief angle, double-sided inserts. For semi-finishing and finish machining of most materials.
Insert Grade IC907
ISO Range - (P10-P30)(M05-M20)(K15-K30)(H05-H15)(S05-S20)(N05-N20)
Coating - PVD TiAlN+TiN
A tough sub-micron substrate, suitable for low-to-medium cutting speeds.For machining of heat resistant alloys, austenitic stainless steel and hard steel.
Chipbreaker: NF. Application Finish
| Insert Size | 160404 |
| ISO Category Grade | H | M | P | S |
| Insert Style | VNMG |
| Clearance Angle | 0\u00b0 |
| ISO Cut | H05 to H15 | M05 to M20 | P10 to P30 | S05 to S20 |
| Pack Quantity | 1 |
| Cutting Edge Length | 16.6mm |
| Thickness | 4.76mm |
| Finish/Coating | TiAlN |
| Cutting Direction | Neutral |
| Chipbreaker | NF |
| Manufacturer Grade | IC907 |
| Material Application | Hardened Steel | High-Temperature Alloys | Stainless Steels | Steels |
| Corner Radius | 0.4 |
| Inscribed Circle | 9.525mm |
| Material | Carbide |
| MFR Part No. | 5505285 |
| Shape | 35\u00b0 Rhombic |
| ISO Category | H | M | P | S |
| ISO Designation | VNMG 160404-NF |
