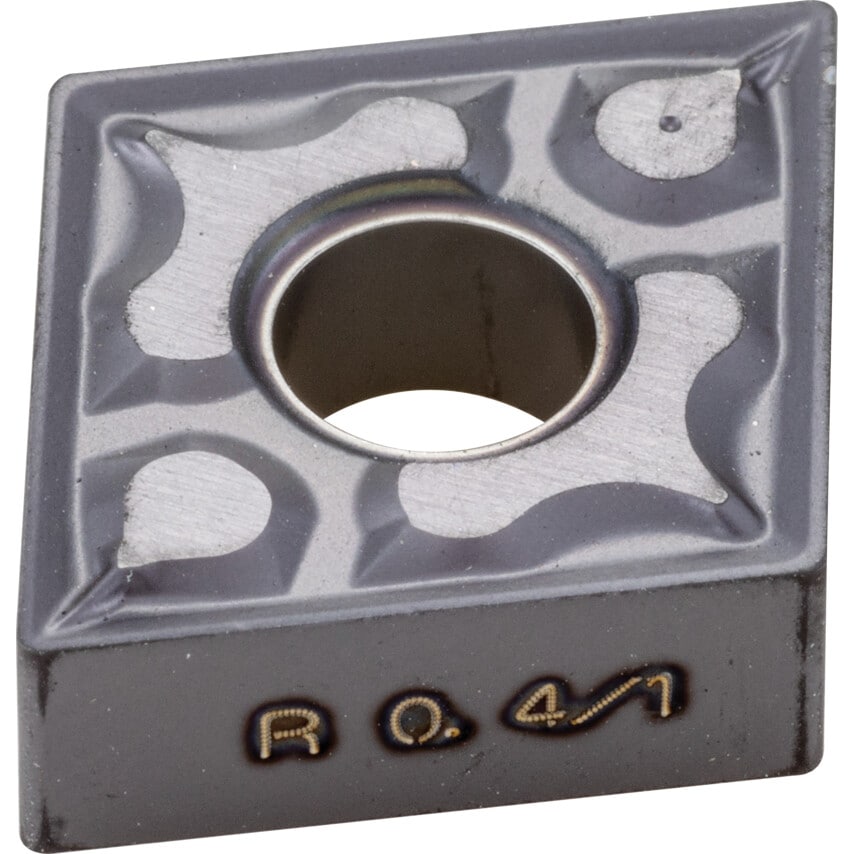

CNMG Turning Inserts grade IC907 designed for machining of heat resistant alloys, austenitic stainless steel and hard steel.
Features and Benefits
Double-sided negative (0) relief angle inserts offering a strong edge for general applications and varying depths of cut dependent on chipbreaker type
A tough sub-micron substrate, suitable for low-to-medium cutting speeds
Rake angle which is positive and varies along the edge to negative in order to prevent chipping
Specially designed reduces cratering
| Manufacturer Grade | IC907 |
| Corner Radius | 0.4 |
| Pack Quantity | 1 |
| Thickness | 4.76mm |
| ISO Designation | CNMG 120404-TF |
| ISO Category Grade | H | K | M | N | P | S |
| MFR Part No. | 5592199 |
| Finish/Coating | TiAIN/TiN |
| ISO Cut | H05 to H15 | K15 to K30 | M05 to M20 | N05 to N20 | P10 to P30 | S05 to S20 |
| ISO Category | H | K | M | N | P | S |
| Chipbreaker | TF |
| Material | Carbide |
| Insert Size | 120404 |
| Material Application | Cast Iron | High-Temperature Alloys | Nonferrous Metals | Nonferrous Metals | Stainless Steels | Steels |
| Inscribed Circle | 12.7mm |
| Cutting Edge Length | 12.9mm |
| Shape | 80\u00b0 Rhombic |
| Insert Style | CNMG |
| Clearance Angle | 0\u00b0 |
