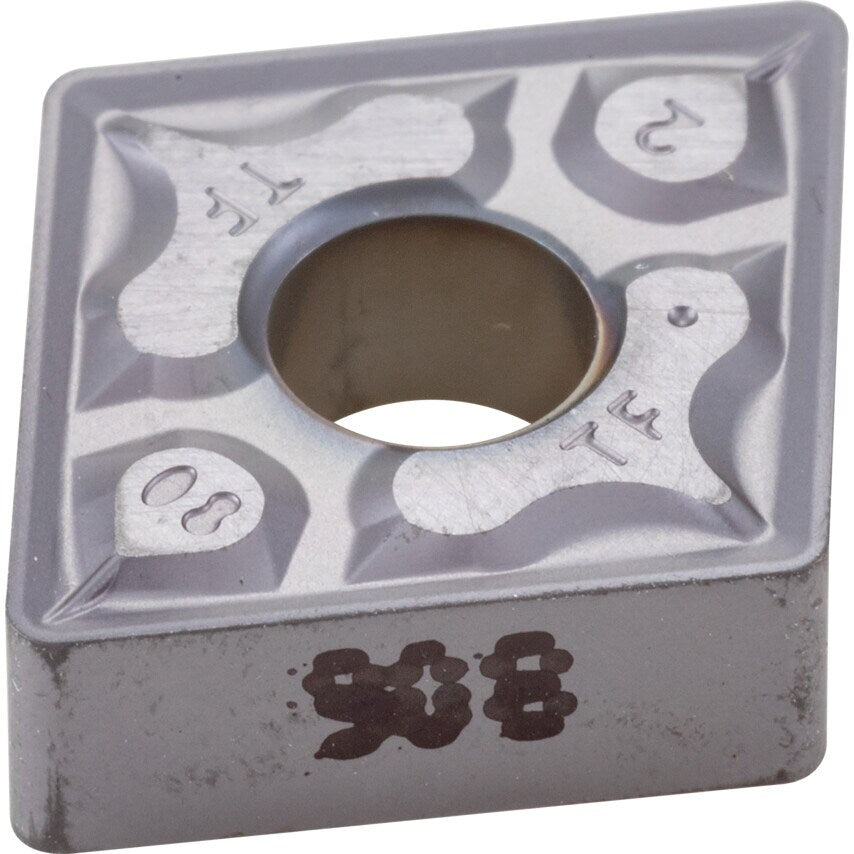

CNMG 80 Rhombic turning inserts are double-sided negative (0) relief angle inserts offering a strong edge for general applications and varying depths of cut dependent on chipbreaker type. The hard substrate construction allows for excellent chipping resistance and combined with the TiAlN PVD coating provides high wear and oxidation resistance.
Features and Benefits
Hard substrate construction for improved rigidity and stability when machining
TiAlN PVD coating for improved wear and oxidation resistance
Ideal for use on a wide range of materials
Specifications
Insert Grade IC908
ISO Range - (P15-P30)(M20-M30)(K20-K40)(H10-H20)(S10-S25)
Coating: PVD TiAlN
Hard substrate consruction
Chipbreaker: TF
Application: Medium
Typical Applications
Turning
Steel
Stainless steel
Cast iron
| Insert Style | CNMG |
| MFR Part No. | 5594061 |
| Shape | 80\u00b0 Rhombic |
| Material | Carbide |
| Clearance Angle | 0\u00b0 |
| ISO Designation | CNMG 120408-TF |
| Material Application | Cast Iron | Hardened Steel | High-Temperature Alloys | Stainless Steels | Steels |
| Pack Quantity | 1 |
| Cutting Edge Length | 12.9mm |
| Insert Size | 120408 |
| ISO Cut | H10 to H20 | K20 to K40 | M20 to M30 | P15 to P30 | S10 to S25 |
| Finish/Coating | TiAlN |
| Manufacturer Grade | IC908 |
| Chipbreaker | TF |
| Corner Radius | 0.8 |
| Inscribed Circle | 12.7mm |
| ISO Category | H | K | M | P | S |
| ISO Category Grade | H | K | M | P | S |
| Thickness | 4.76mm |
