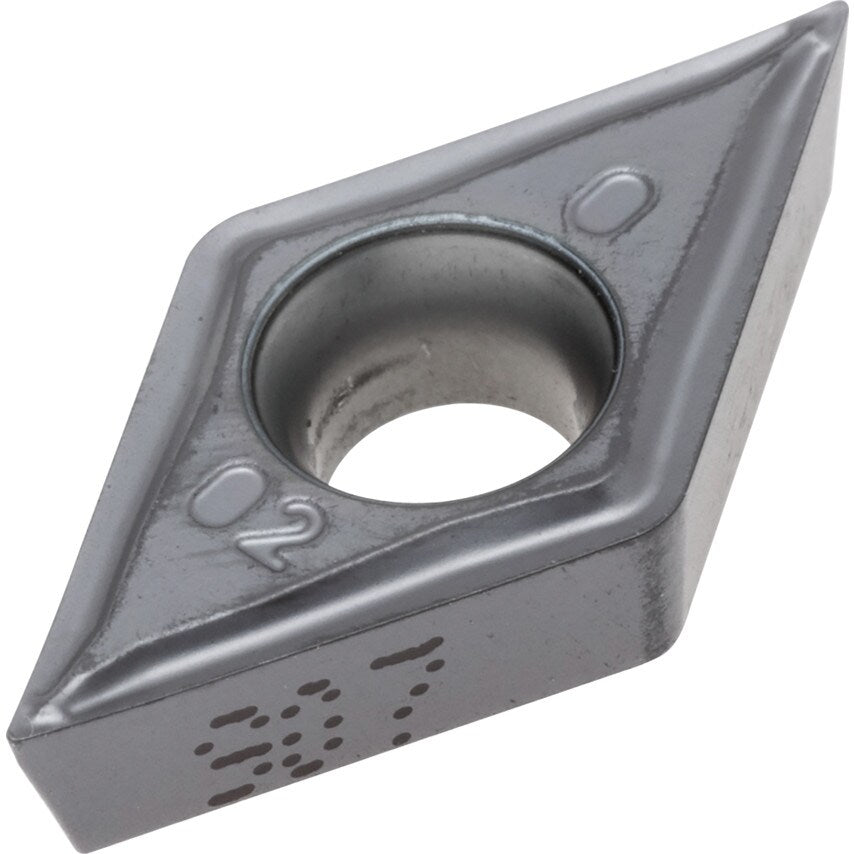

DCMT Turning Inserts
55 Rhombic Insert
Insert Grade IC907
ISO Range - (P10-P30)(M05-M20)(K15-K30)(H05-H15)(S05-S20)(N05-N20)
Coating - PVD TiAlN+TiN
A tough sub-micron substrate, suitable for low-to-medium cutting speeds.For machining of heat resistant alloys, austenitic stainless steel and hard steel.
| Corner Radius | 0.2 |
| Material Application | Cast Iron | Hardened Steel | High-Temperature Alloys | Nonferrous Metals | Nonferrous Metals | Stainless Steels |
| Manufacturer Grade | IC907 |
| ISO Category | H | K | M | N | P | S |
| ISO Cut | H05 to H15 | K15 to K30 | M05 to M20 | N05 to N20 | P10 to P30 | S05 to S20 |
| ISO Category Grade | H | K | M | N | P | S |
| Finish/Coating | TiAIN/TiN |
| Insert Style | DCMT |
| Shape | 55\u00b0 Rhombic |
| MFR Part No. | 5505012 |
| Chipbreaker | SM |
| Material | Carbide |
| Inscribed Circle | 9.525mm |
| Pack Quantity | 1 |
| Thickness | 3.97mm |
| Cutting Direction | Neutral |
| ISO Designation | DCMT 11T302-SM |
| Clearance Angle | 7\u00b0 |
| Cutting Edge Length | 11.6mm |
| Insert Size | 11T302 |
