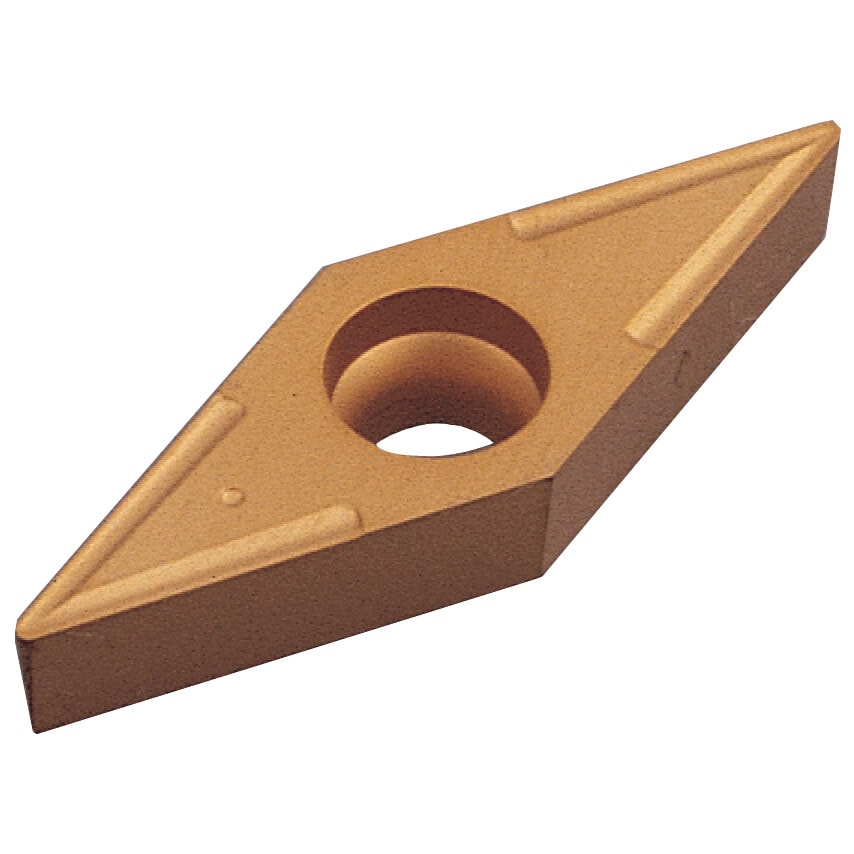

VCMT Turning Inserts
35 Rhombic Insert
7 positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
Insert Grade IC908
ISO Range - (P15-P30)(M20-M30)(K20-K40)(H10-H20)(S10-S25)
Coating - PVD TiAlN
A hard fine grain substrate for use on a wide range of materials, applications and machining conditions.
| Thickness | 3.18mm |
| Cutting Edge Length | 11.2mm |
| Pack Quantity | 1 |
| Insert Size | 110304 |
| Cutting Direction | Neutral |
| MFR Part No. | 5505695 |
| Finish/Coating | TiAlN |
| Corner Radius | 0.4 |
| ISO Cut | H20 to H30 | K20 to K40 | M20 to M30 | N15 to N25 | P15 to P30 | S15 to S25 |
| Clearance Angle | 7\u00b0 |
| Material | Carbide |
| Chipbreaker | SM |
| Manufacturer Grade | IC908 |
| ISO Designation | VCMT 110304-SM |
| Shape | 35\u00b0 Rhombic |
| Insert Style | VCMT |
| ISO Category Grade | H | K | M | N | P | S |
| Material Application | Alloy | Carbon Steel | Stainless Steels |
| ISO Category | H | K | M | N | P | S |
| Inscribed Circle | 6.35mm |
