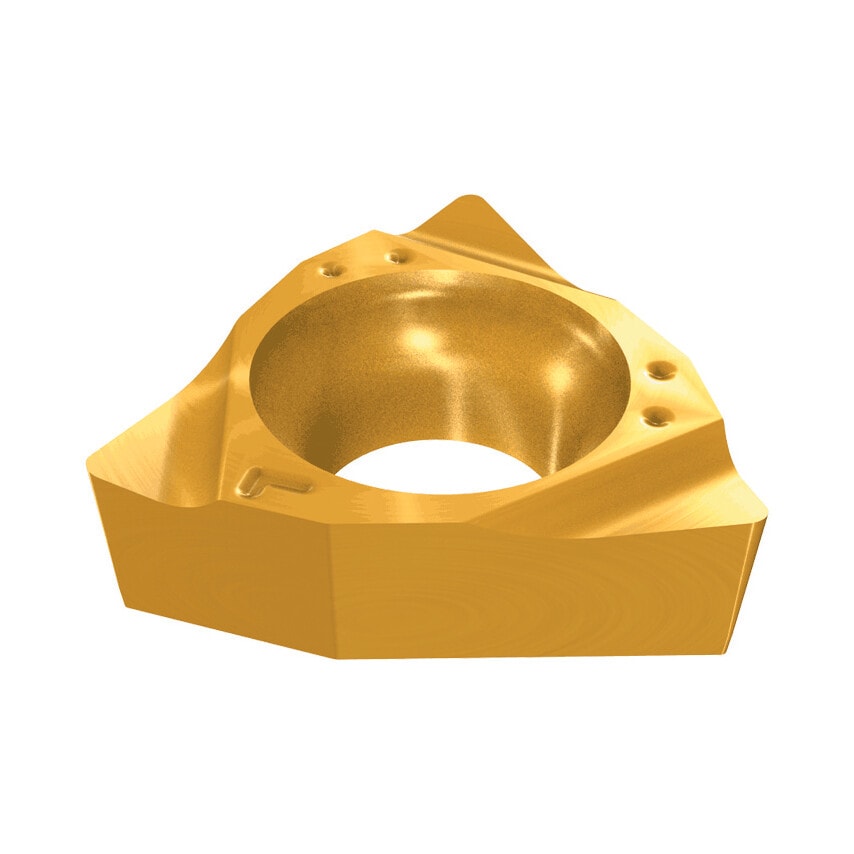

WBMT Turning Inserts

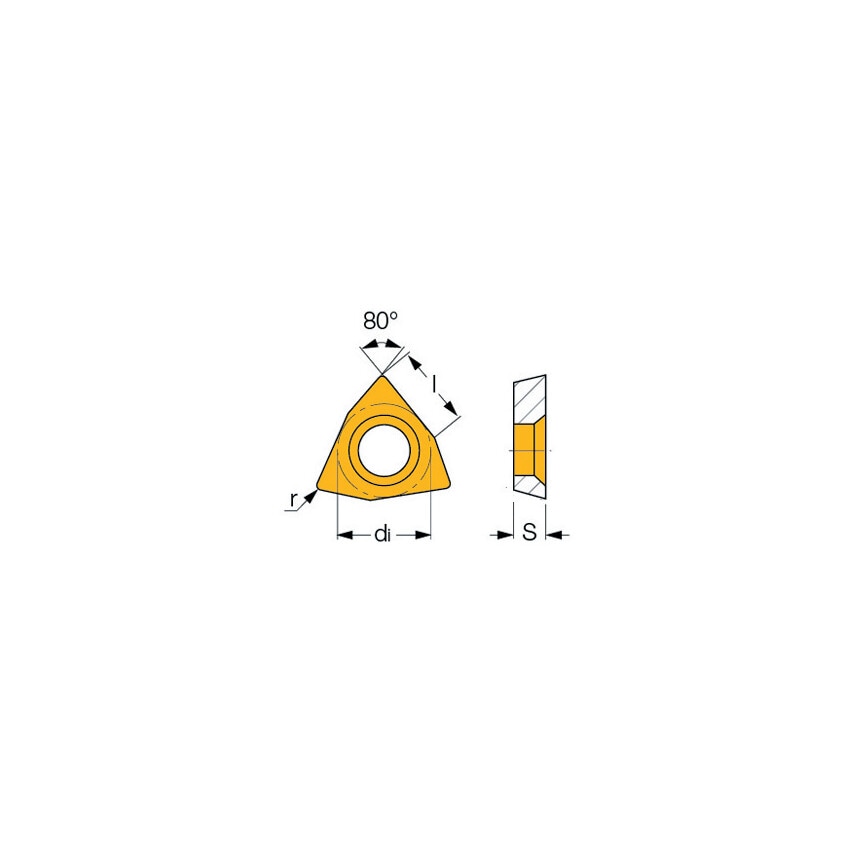

80 Trigon Insert
5 positive flank inserts with a ground chipformer. Used for for finishing on miniature boring bars, provide excellent surface finish. Suitable for a wide range of materials.
Insert Grade : IC30N
ISO Range - (P10-P30)(M10-M20) (H10-H25)
Coating Layers: Uncoated
Cermet grade with excellent resistance to wear and plasticde formation even at high cutting speeds and medium feeds. Useful for semifinishing and finishing.
| Insert Size | 020104 |
| Material | Cermet |
| Shape | Trigon |
| Insert Style | WBMT |
| Inscribed Circle | 9.52mm |
| ISO Category | H | M | P |
| Cutting Edge Length | 6.5mm |
| Pack Quantity | 1 |
| Clearance Angle | 5\u00b0 |
| Material Application | Hardened Steel | Stainless Steels | Steels |
| Corner Radius | 0.2 |
| Cutting Direction | Left Hand |
| ISO Category Grade | H | M | P |
| ISO Cut | H10 to H25 | M10 to M20 | P10 to P30 |
| Finish/Coating | Uncoated |
| Manufacturer Grade | IC30N |
| MFR Part No. | 5503015 |
| ISO Designation | WBMT 060102L |
| Thickness | 1.59mm |
