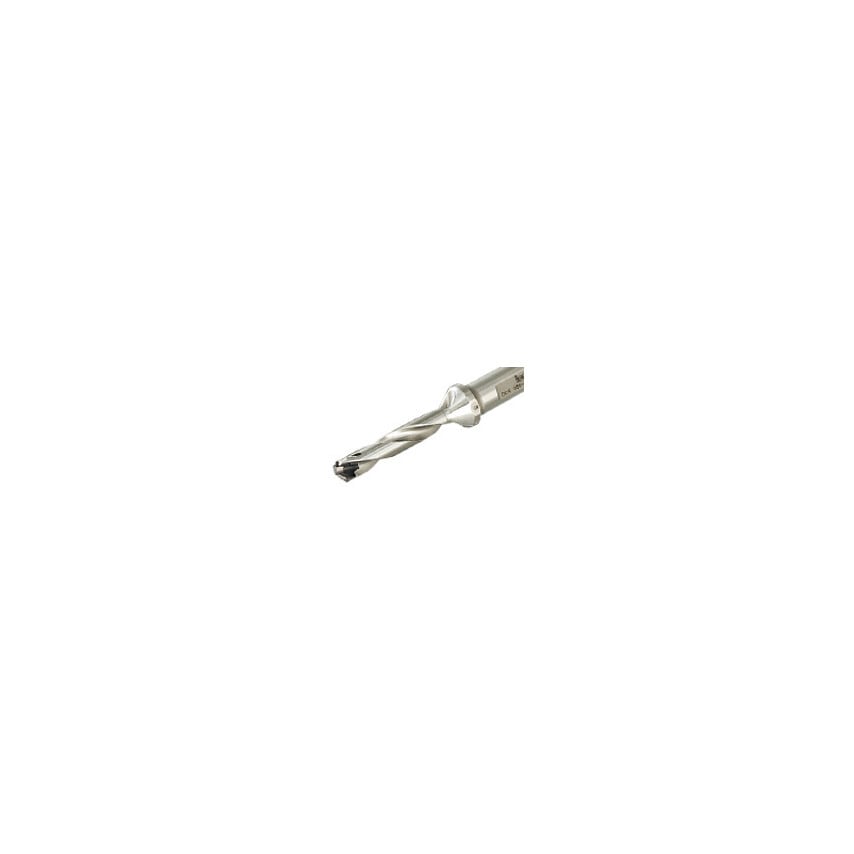

DCN A-5D: SUMOCHAM 5xD drills with indexable heads, one flat shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Do not mount smaller drilling heads than specificed range for drill body.
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.

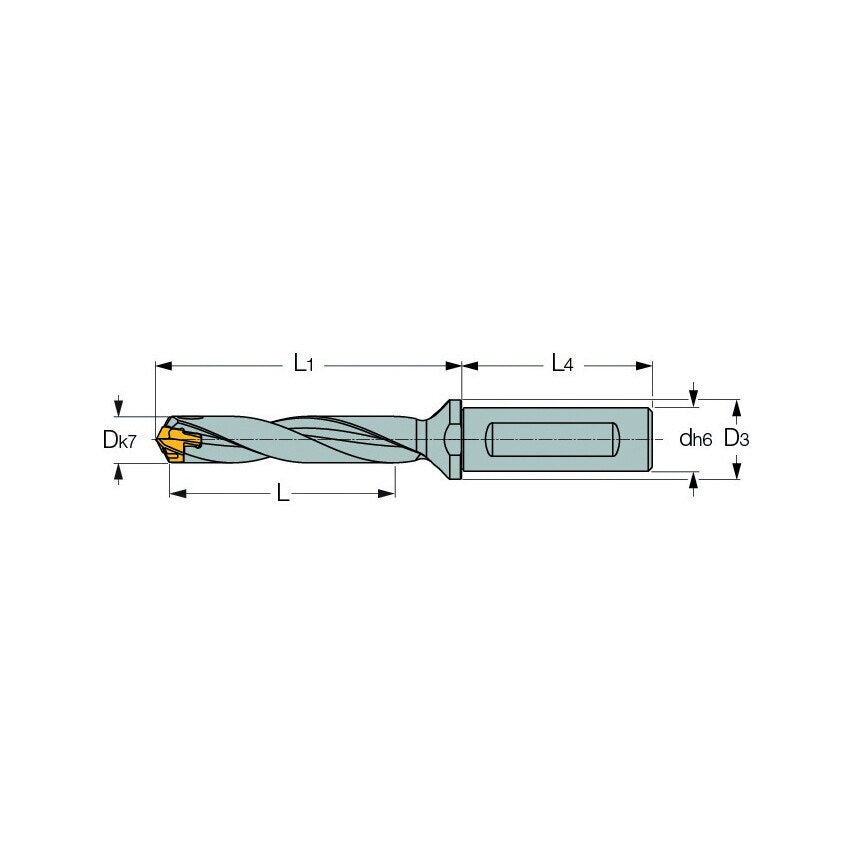

| Drilling System | Sumocham |
| Diameter | 14 |
| Diameter x Depth | 5xD |
| ISO Designation | DCN 140-070-16A-5D |
| Series | Sumocham |
| Flute Length | 70mm |
| Depth x Diameter Ratio | 5xD |
| Overall Length | 138.2mm |
| MFR Part No. | 3202428 |
| Shank Type | Flat |
| Shank Length | 48mm |
| Coolant Delivery | Coolant Through |
| Shank Diameter | 16mm |
