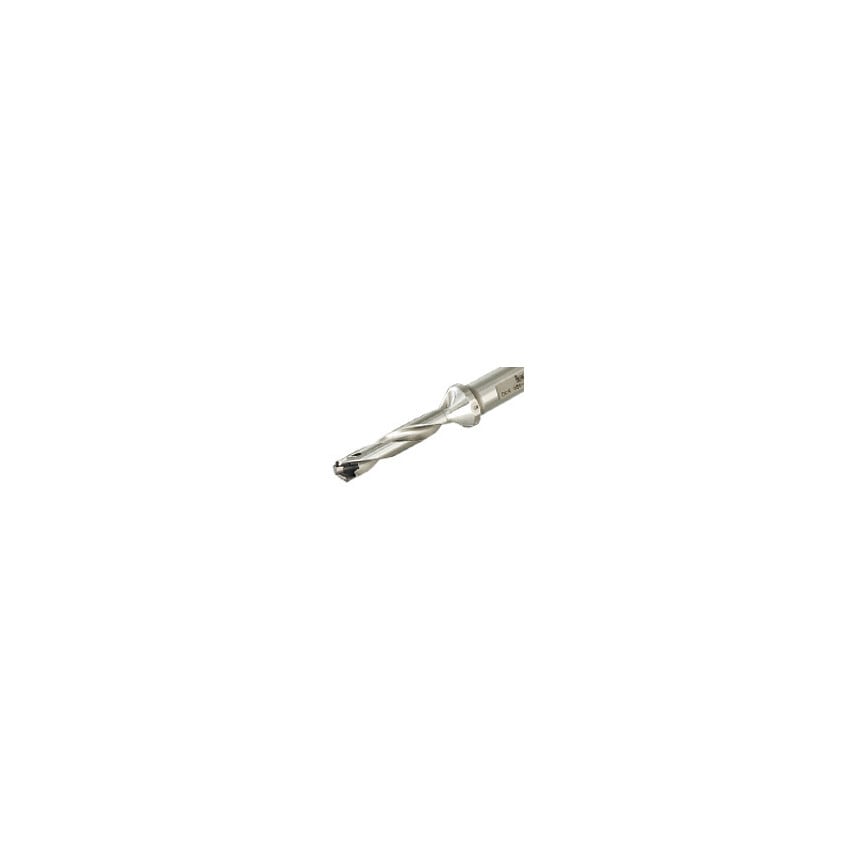

DCN A-5D: SUMOCHAM 5xD drills with indexable heads, one flat shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Do not mount smaller drilling heads than specificed range for drill body.
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.

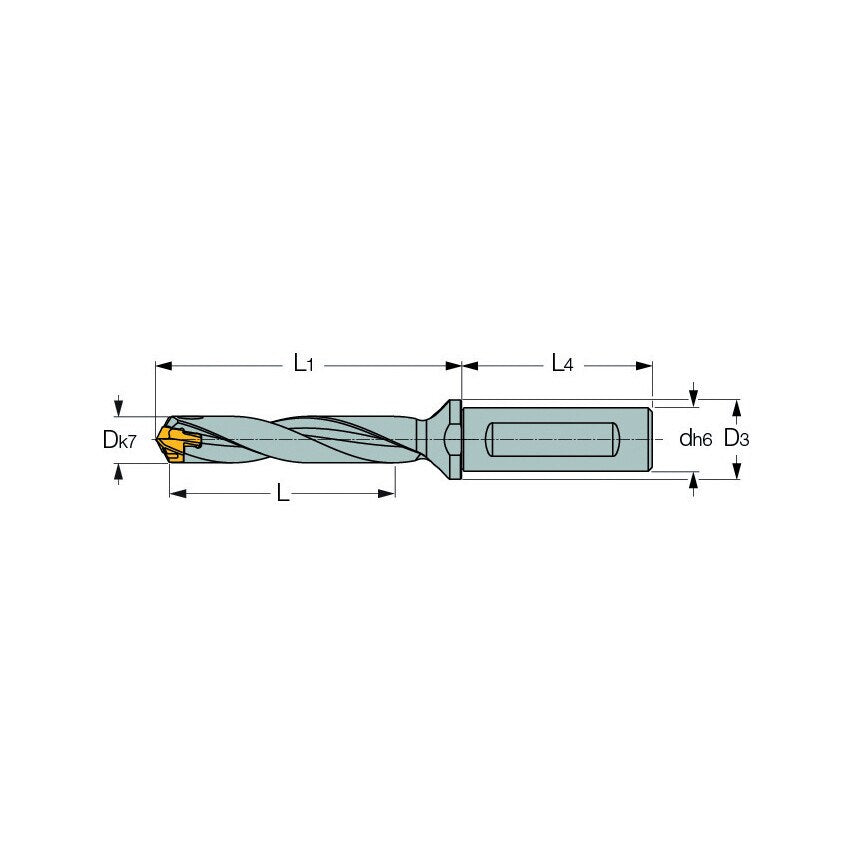

| Diameter x Depth | 5xD |
| Depth x Diameter Ratio | 5xD |
| Drilling System | Sumocham |
| Diameter | 18 |
| Shank Type | Flat |
| Flute Length | 93.3mm |
| Coolant Delivery | Coolant Through |
| Shank Length | 56mm |
| Series | Sumocham |
| ISO Designation | DCN 180-090-25A-5D |
| MFR Part No. | 3201681 |
| Shank Diameter | 25mm |
| Overall Length | 174.5mm |
