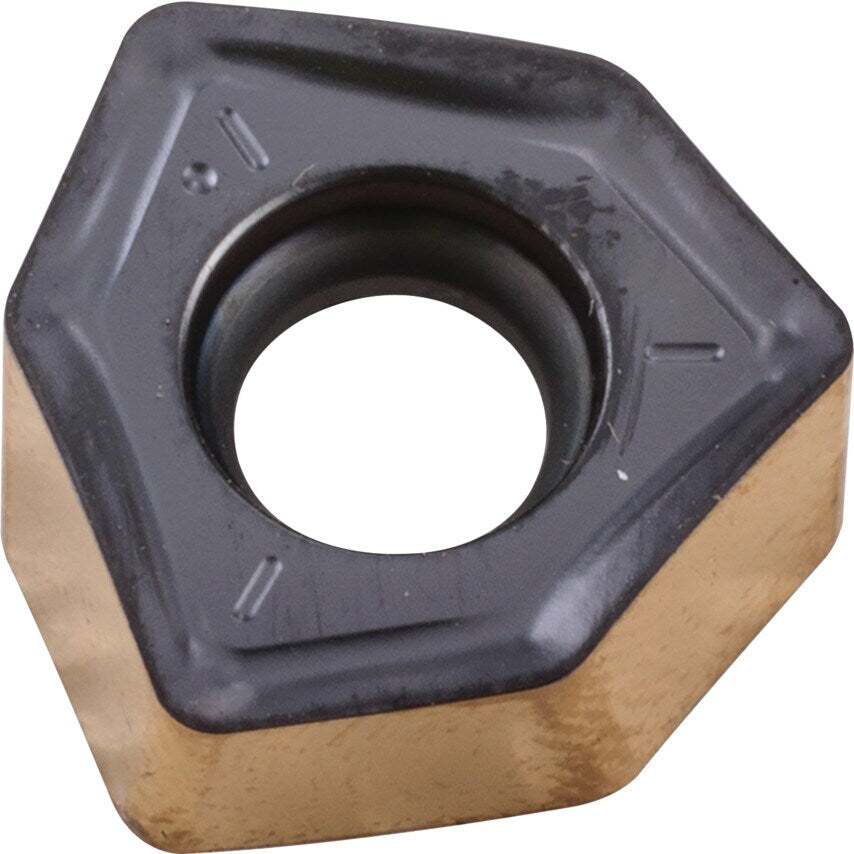

Wiht theh H600 WXCU Milling Inserts, Iscar has merged three proven ideas into their new Helido Feedmill inserts for high-feed rough milling and cavity work in die & mold shops. The new H600 WXCU inserts feature helical cutting edges for smoother entry, 17 lead angles to reduce lateral forces and SUMO TEC surface treatment for longer edge life. Each trigon shaped insert provides six peripherally ground cutting edges and is seated securely into inclined dovetail pockets to prevent movement.
Features and Benefits
Coated with SUMO TEC surface treatment for added durability
Features a tough grade TiCN+TiN PVD
Double sided with 6 cutting edges for fast feed machining
Typical Applications
Milling
Interrupted cutting
Heavy machining operations
Standards
ISO Range - P/M/K: (P20-P40)(M35-M45)
ISO Range - H/S/N: (S15-S30)
Insert Grade : IC830
| Chipbreaker | T |
| Corner Radius | 1.2mm |
| Shape | Trigon |
| Insert Style | H600 WXCU |
| Inscribed Circle | 13.65mm |
| Cutting Edge Length | 8.8mm |
| Thickness | 6.8mm |
| Manufacturer Grade | IC830 |
| Material | Carbide |
| Pack Quantity | 1 |
| ISO Cut | M25 to M35 | P20 to P40 | S15 to S30 |
| ISO Designation | H600 WXCU080612T |
| ISO Category Grade | M | P | S |
| Finish/Coating | AlTiN+TiN |
| Material Application | High-Temperature Alloys | Stainless Steels | Steels |
| Insert Size | 806 |
