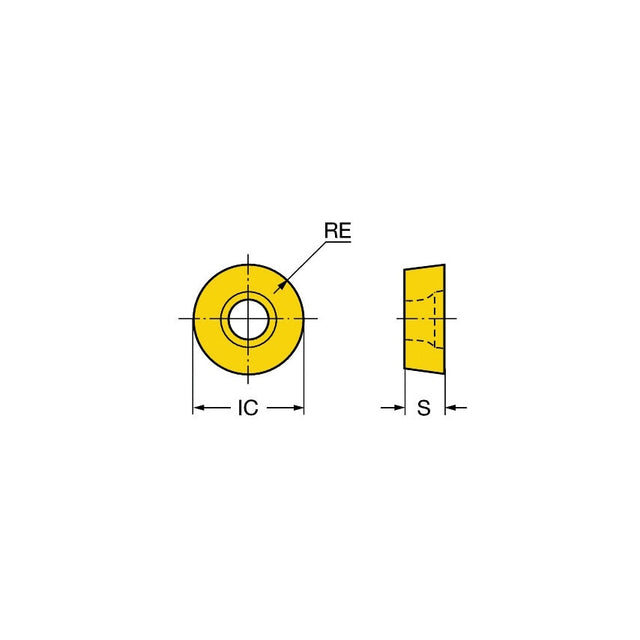

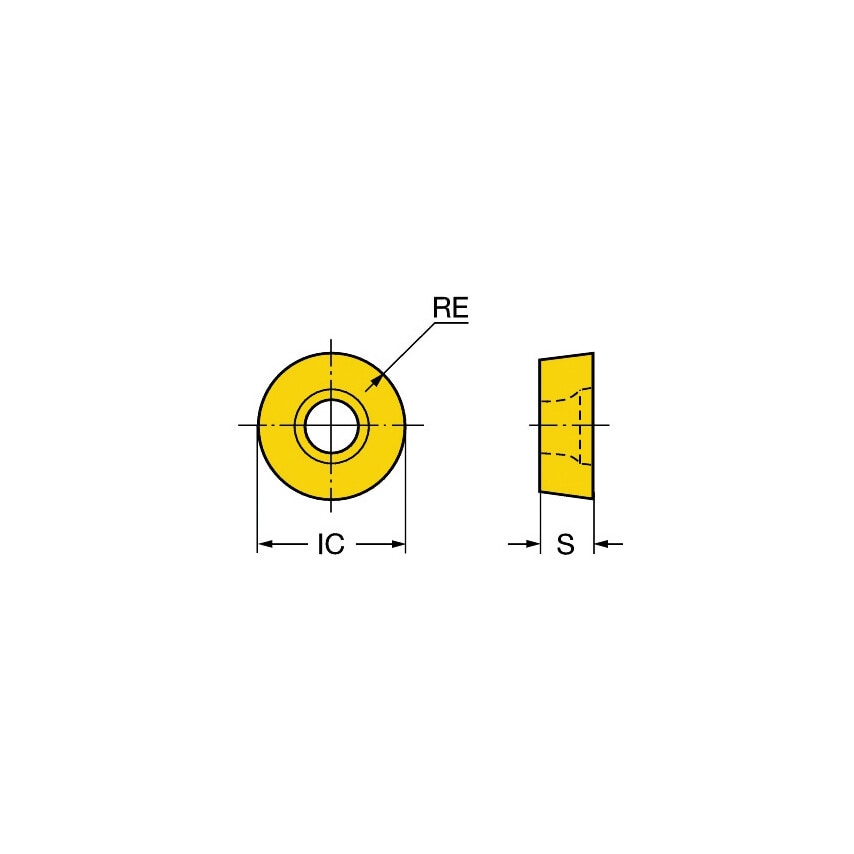

RCMT Turning Inserts
Round Insert
7 positive flank inserts used for medium and finish profiling on a wide range of materials.
Insert Grade IC20
ISO Range - (M10-M25)(K10-K20)(H05-H15)(S05-S20)(N05-N25)
Coating - Uncoated
An uncoated grade for semifinishing, finishing and semiroughing of aluminum, cast iron and stainless steel.
| Finish/Coating | Uncoated |
| Material Application | Cast Iron | Hardened Steel | Nonferrous Metals | Nonferrous Metals | Stainless Steels |
| Material | Carbide |
| ISO Designation | RCMT 0803MO-14 |
| Clearance Angle | 7\u00b0 |
| Pack Quantity | 1 |
| Cutting Edge Length | 8mm |
| Manufacturer Grade | IC20 |
| MFR Part No. | 5500606 |
| ISO Category | H | K | M | N | S |
| Insert Size | 0803M0 |
| ISO Cut | H05 to H15 | K10 to K20 | M10 to M25 | N05 to N25 | S05 to S20 |
| Inscribed Circle | 8mm |
| Shape | Round |
| Thickness | 3.18mm |
| Insert Style | RCMT |
| ISO Category Grade | H | K | M | N | S |
