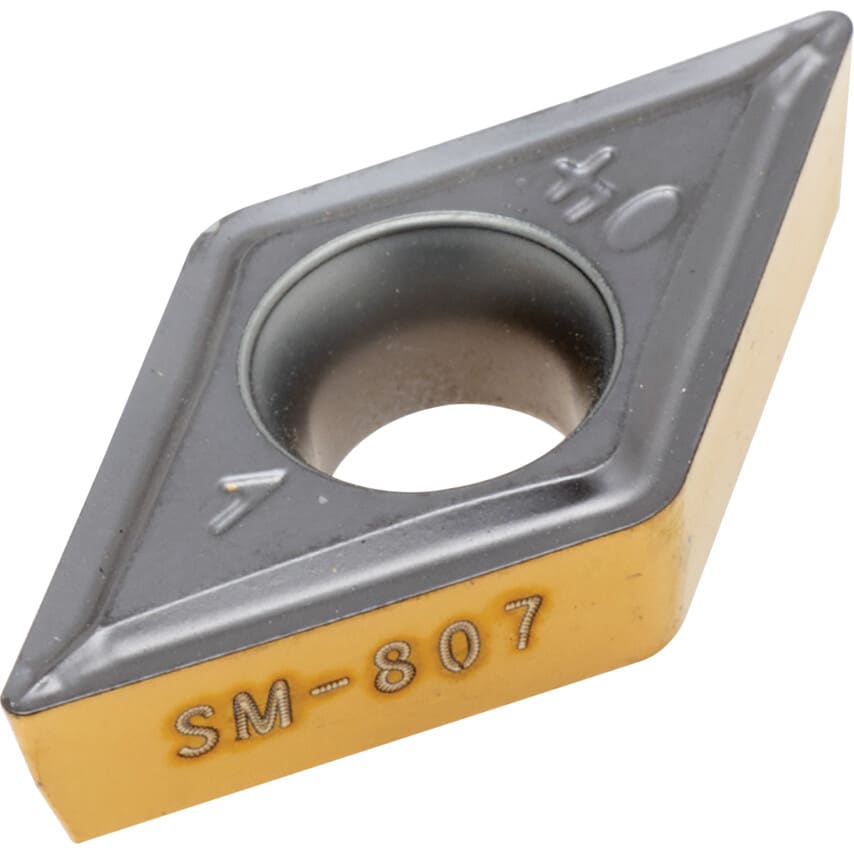

DCMT Turning Inserts
55 Rhombic Insert
7 positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials
Insert Grade IC807
ISO Range - (P10-P30)(M05-M20)(K10-K30)(H05-H15)(S05-S20)
Coating - PVD TiAlN+TiN
For machining of heat resistant alloys, austenitic stainless steel and hard steel. Low to medium cutting speeds
| Insert Size | 11T304 |
| Clearance Angle | 7\u00b0 |
| Chipbreaker | SM |
| Corner Radius | 0.4 |
| ISO Category Grade | H | K | M | P | S |
| Manufacturer Grade | IC807 |
| ISO Category | H | K | M | P | S |
| ISO Designation | DCMT 11T304-SM |
| Inscribed Circle | 9.525mm |
| ISO Cut | H05 to H15 | K10 to K30 | M05 to M20 | P10 to P30 | S05 to S20 |
| Material Application | Cast Iron | Hardened Steel | High-Temperature Alloys | Stainless Steels | Steels |
| Material | Carbide |
| Pack Quantity | 1 |
| Shape | 55\u00b0 Rhombic |
| Cutting Edge Length | 11.6mm |
| Finish/Coating | TiAIN/TiN |
| MFR Part No. | 5508240 |
| Insert Style | DCMT |
| Thickness | 3.97mm |
