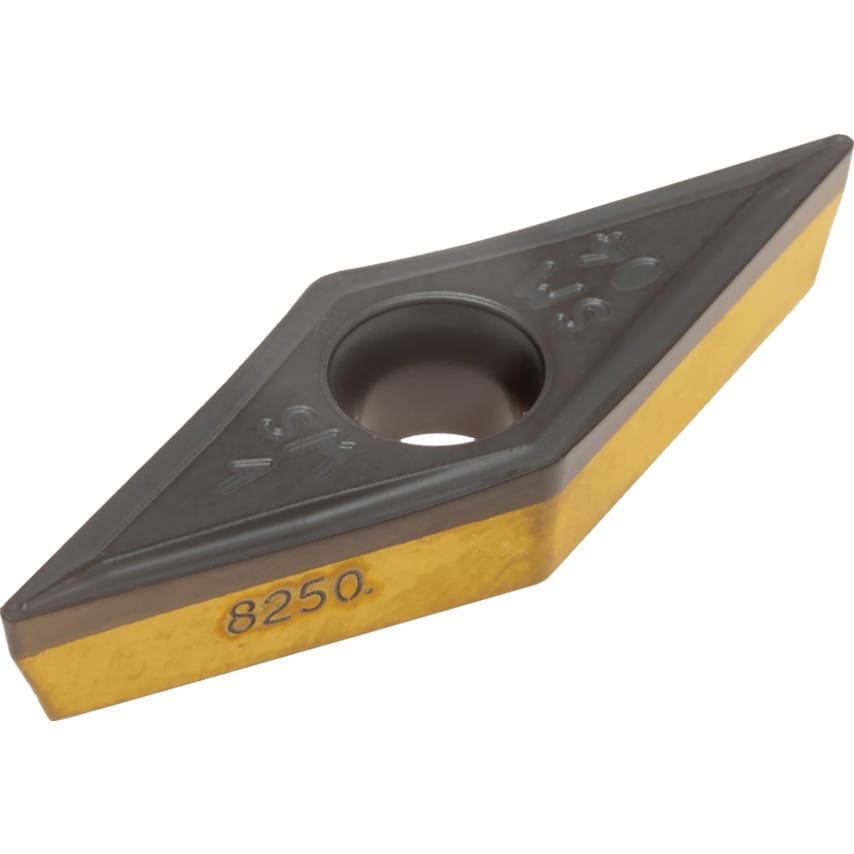

VCMT-SM turning inserts feature a 7 positive flank inserts used for semi-finish and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including soft and exotic alloys.
Features and Benefits
A tough substrate for machining in a wide range of conditions
CVD TiCN+Al2O3+TiN coating for high toughness and wear resistance
geometry lends itself to semi-finish and finishing applications
Typical Applications
Semi-finishing
Finishing
Standards
Insert Grade IC8250
ISO Range -(P10-P35)(M05-M20)
| MFR Part No. | 5508141 |
| Chipbreaker | SM |
| ISO Cut | M05 to M20 | P10 to P35 |
| Insert Style | VCMT |
| Pack Quantity | 1 |
| ISO Category Grade | M | P |
| Material | Carbide |
| Finish/Coating | Al2O3+TiCN+TiN |
| Material Application | Stainless Steels | Steels |
| Manufacturer Grade | IC8250 |
| Shape | 35\u00b0 Rhombic |
| Inscribed Circle | 9.52mm |
| ISO Category | M | P |
| ISO Designation | VCMT 160404-SM |
| Corner Radius | 0.4 |
| Cutting Edge Length | 16.6mm |
| Clearance Angle | 7\u00b0 |
| Insert Size | 160404 |
| Thickness | 4.76mm |
