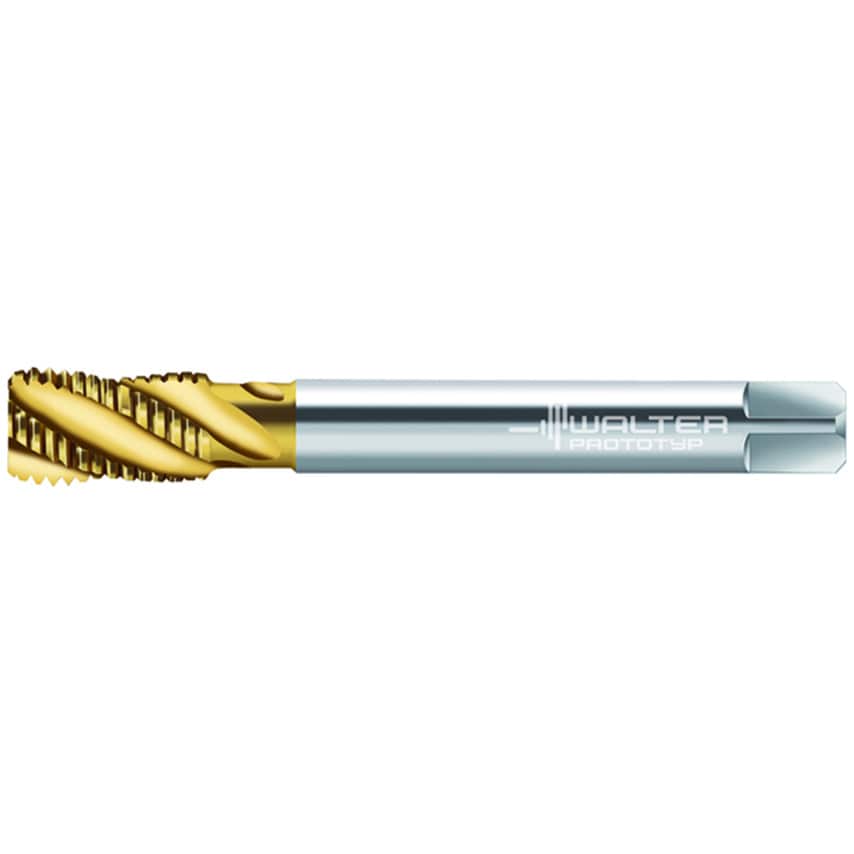

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD MF/6HX DIN 374 right hand flute 40 Suitable for blind hole TIN MF 14x1.5 P=0.0591in
| Shank Diameter | 11mm |
| Pitch | 1.5mm |
| ISO Designation | M2156305-M14X1.5 |
| Finish/Coating | TiN |
| Overall Length | 100mm |
| Series | Paradur\u00ae X\u00b7pert M |
| Dimensions Standard | DIN 374 |
| Material | HSSE |
| Number of Grooves | 4 |
| Thread Standard | Metric |
| Thread Pitch | 1.5mm |
| Product Type | Machine Taps |
| Thread Size | M14 |
| Clamping Width | 9mm |
| Connection Diameter | 14mm |
| ISO Category | M | P |
| MFR Part No. | 6149890 |
| Cutting Edge Length | 15mm |
| Usable Length | 71mm |
| Tool Designation | M2156305-M14X1.5 |
| Tap Type | Spiral Flute |
| Driving Square Length | 12mm |
