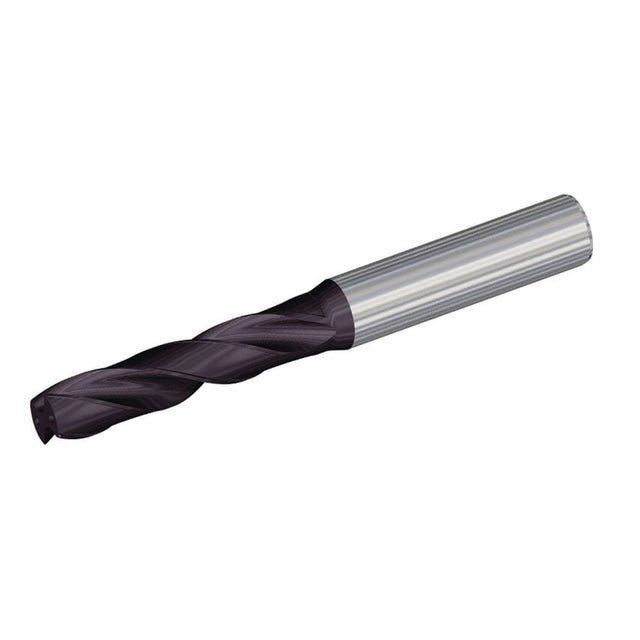

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Unit Measured | Metric |
| Helix Angle | 28.748 |
| Primary Material | Steel |
| Adapter Style | Straight-Cylindrical |
| Coolant Supplied | Yes |
| Coolant Diameter | 1.7600mm (0.0787in) |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Overall Length | 102mm | 102.0000mm |
| Functional Length | 101.6030mm |
| Assembly Length | 58.603mm |
| Drill Diameter | 11.3500mm |
| Number of Flutes | 2 |
| MFR Part No. | 3667918 |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Shank Length | 45.0000mm |
| Flute Construction | Helical Flute |
| Helix Type | Right Hand Helix/Flute |
| Adapter Type | Cylindrical |
| Flute Length | 55mm | 55.0000mm |
| Drill Depth | 40mm | 40.0000mm |
| Drill Point | 0.397mm |
| Hand Preference | Right |
| Finish/Coating | TiAlN |
