Kennametal, the trusted innovator in metal cutting technology, introduced a new era in tooling. Harnessing advanced science and exceptional experience, they have gone more than a cut above - and created Beyond?, their next generation, ultra-performance tooling platform. This powerful collection delivers unheard of levels of productivity, efficiency, dependability, and profitability. And beyond.
Higher Productivity & Profitability - up to 30% Higher
lAchieve higher metal removal rate (speed, feed, and depth-of-cut).
2Gain longer tool life.
Versatility
lProducts can be applied across a wide range of applications.
2Can be used in low- to high-speed applications.
Reliability
lProducts deliver uniform wear for predictable tool life.
2Achieve reduced depth-of-cut notching.
3Virtually eliminate chip flow damage.
Complete Portfolio
lThe Beyond product portfolio can be used in a complete range of steel, cast iron, and stainless steel ISO turning workpieces.
| Insert Holding Type | Lever Lock |
| Clearance Angle | 0\u00b0 |
| Insert Style | DN__ |
| Shank Width (b) | 25mm |
| MFR Part No. | 1192385 |
| Insert Inscribed Circle | 12.7mm |
| Approach Angle | 93\u00b0 |
| Body Material | Steel |
| Toolholder Style | PDJN |
| Overall Length (l1) | 150mm |
| Insert Size | 15 |
| Cutting Direction | Right Hand |
| Insert Shape | 55\u00b0 Rhombic\u00b0 |
| Head Length (l2) | 36mm |
| Insert Cutting Edge Length | 15.5mm |
| Shank Material | Steel |
| Cutting Height (h1) | 25mm |
| Side to Cutting Tip (f) | 32mm |
| Product Type | Tool Holders |
| Coolant Delivery | External |

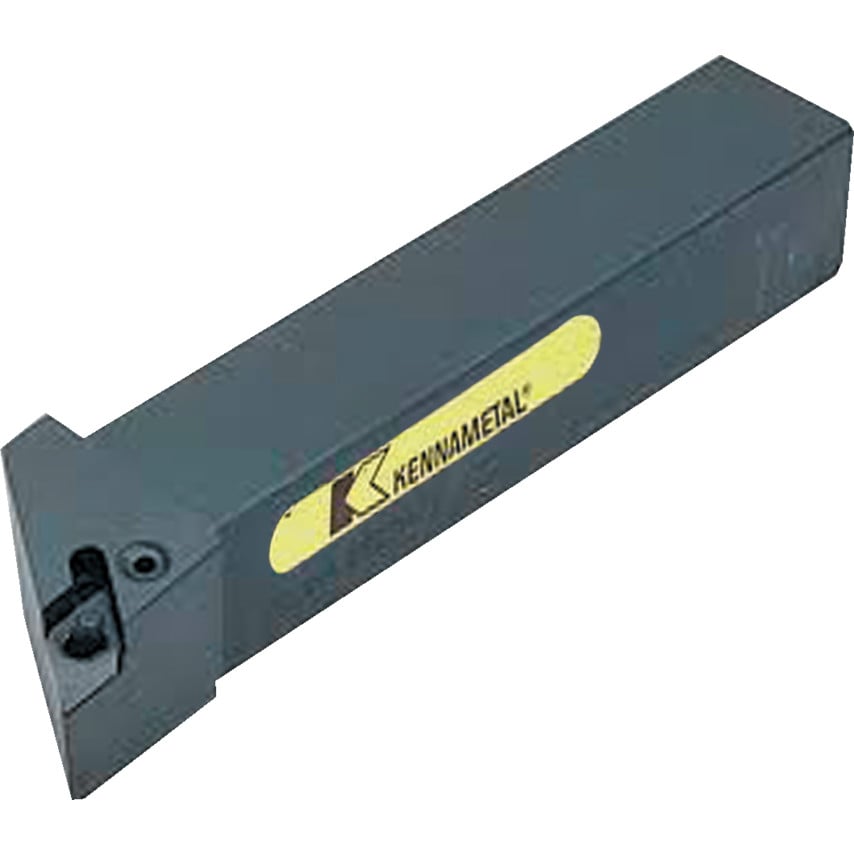

| ISO Designation | PDJNR 2525M15 |
| Shank Height (h) | 25mm |
