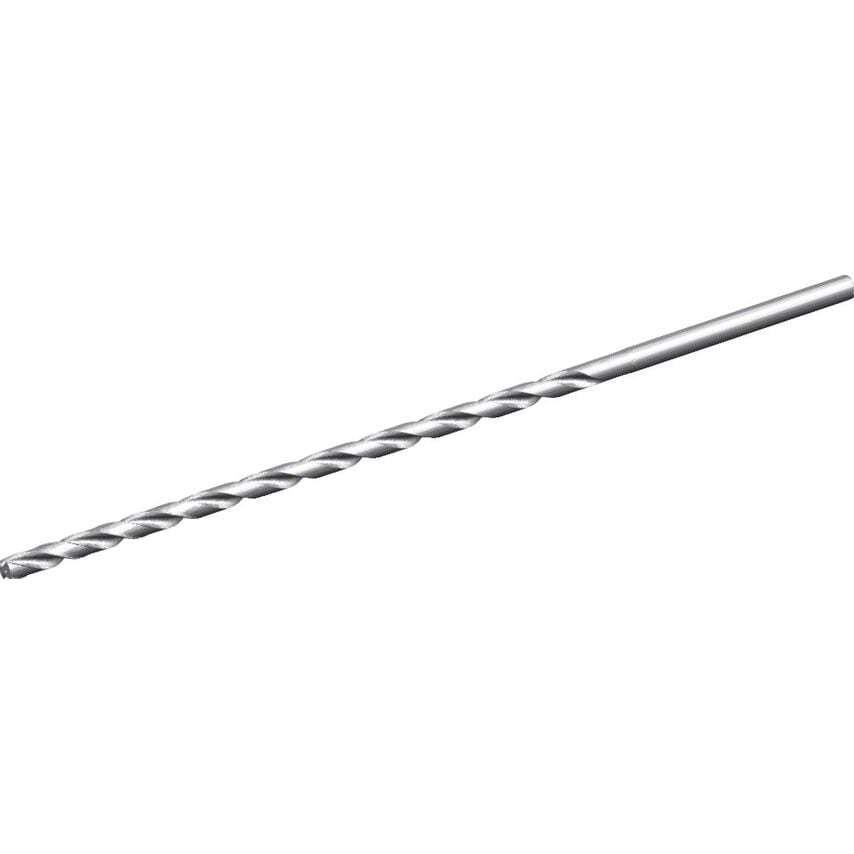

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Coolant Diameter | 1.7600mm (0.0445in) |
| Overall Length | 377mm | 377.0000mm |
| MFR Part No. | 3891703 |
| Unit Measured | Metric |
| Functional Length | 374.8770mm |
| Drill Diameter | 11.5000mm |
| Coolant Supplied | Yes |
| Shank Length | 48.0000mm |
| Primary Material | Non-Ferrous Materials |
| Drill Depth | 294mm | 294.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 326.877mm |
| Adapter Type | Cylindrical |
| Number of Flutes | 2 |
| Flute Construction | Helical Flute |
| Flute Length | 319mm | 319.0000mm |
| Clamping Length | 45mm |
| Helix Angle | 29.066 |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Drill Point | 2.123mm |
