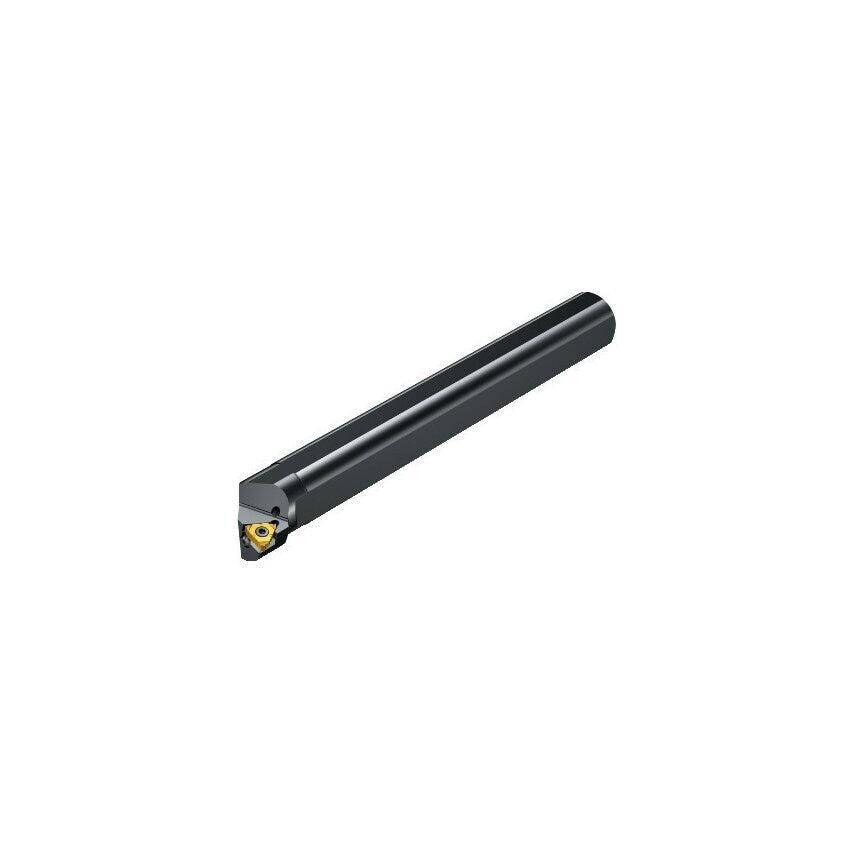

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| Through Hole Function Property | Yes |
| MFR Part No. | 25961384 |
| Machine Side Body Angle | 0\u00b0 |
| Minimum Bore Diameter | 25mm |
| Hand Preference | Right |
| Functional Length | 250mm |
| CoroPak | 11.1 |
| Unit Measured | Metric |
| Maximum Overhang | 60mm |
| Body Diameter | 0.787402in |
| Axial Clearance Angle | 15\u00b0 |
| Weight | 0.5kg |
| Coolant Entry Style | 1 |
| Connection Diameter | 20mm |
| Usable Length | 60mm |
