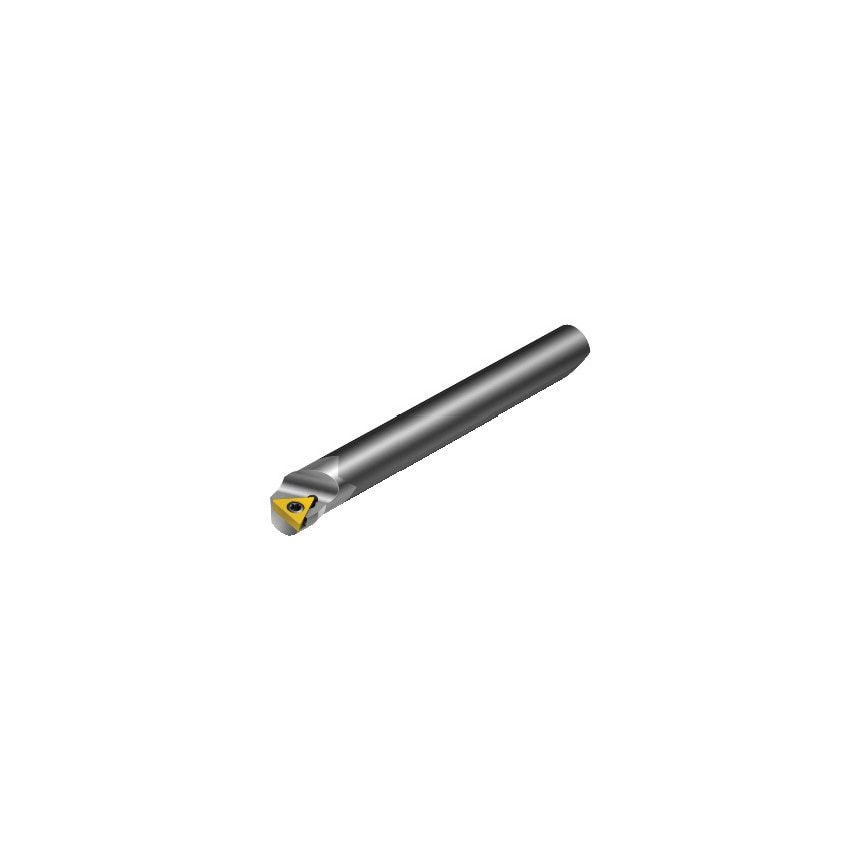

Product Range: CoroBore 824Boring small-diameter holes even at long overhangs has never been easier. Sandvik Coromant is now expanding the fine boring offer with new boring concepts. CoroTurn 824 XS boring bars and the exchangeable-head (EH) system make boring down to 1 mm (0.039 inch) diameter possible, while keeping your tool inventory at a minimum.Features & Benefits- Small-diameter fine boring- Hole tolerances from IT6- Boring with solid carbide boring bars reduces vibration and increases stability- Rigid system for maximum stability with internal coolant supplyApplication- Fine boring of small holes in all materials- Stable boring at longer overhangs (up to 6 diameter)- Better accessibility with small boring head diameters, making it possible to bore in complex components- Solid carbide shanks provide longer boring depths up to 6 diameter
| Hand Preference | Right |
| Usable Length | 50mm |
| Body Material | Carbide |
| Weight | 0.11kg |
| Coolant Entry Style | 1 |
| CoroPak | 13.2 |
| Adaptive Interface Machine Direction (ADINTMS) | CoroTurn XS -Metric |
| Minimum Bore Diameter | 17mm |
| Tool Cutting Edge Angle | 92\u00b0 |
| Functional Length | 73.17mm |
| MFR Part No. | 26424099 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Connection Diameter | 10mm |
