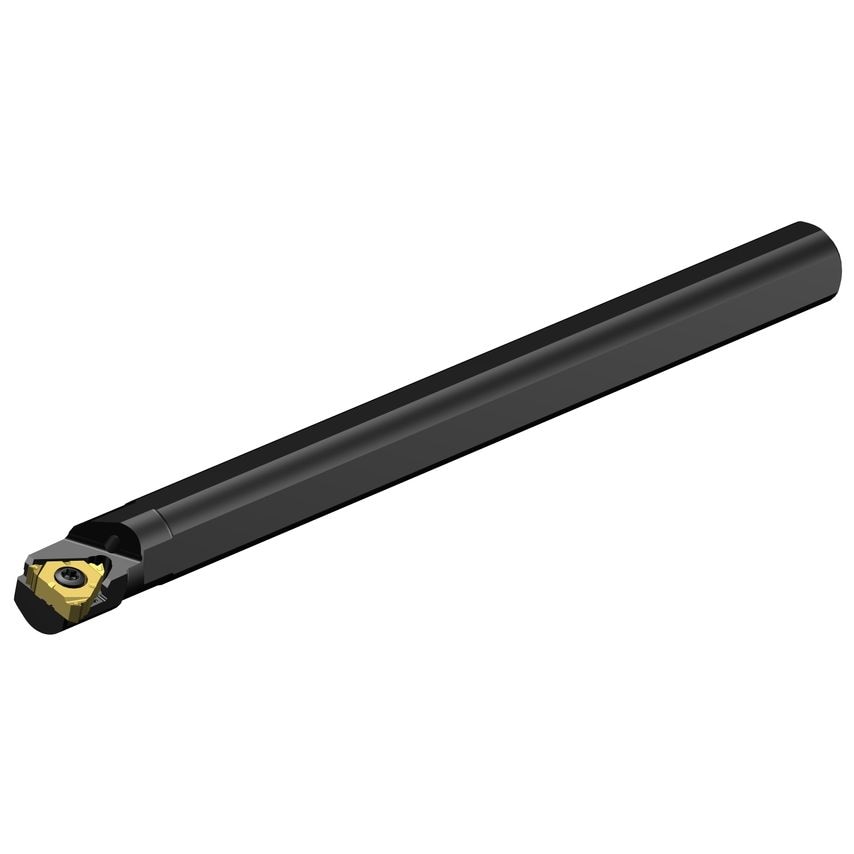

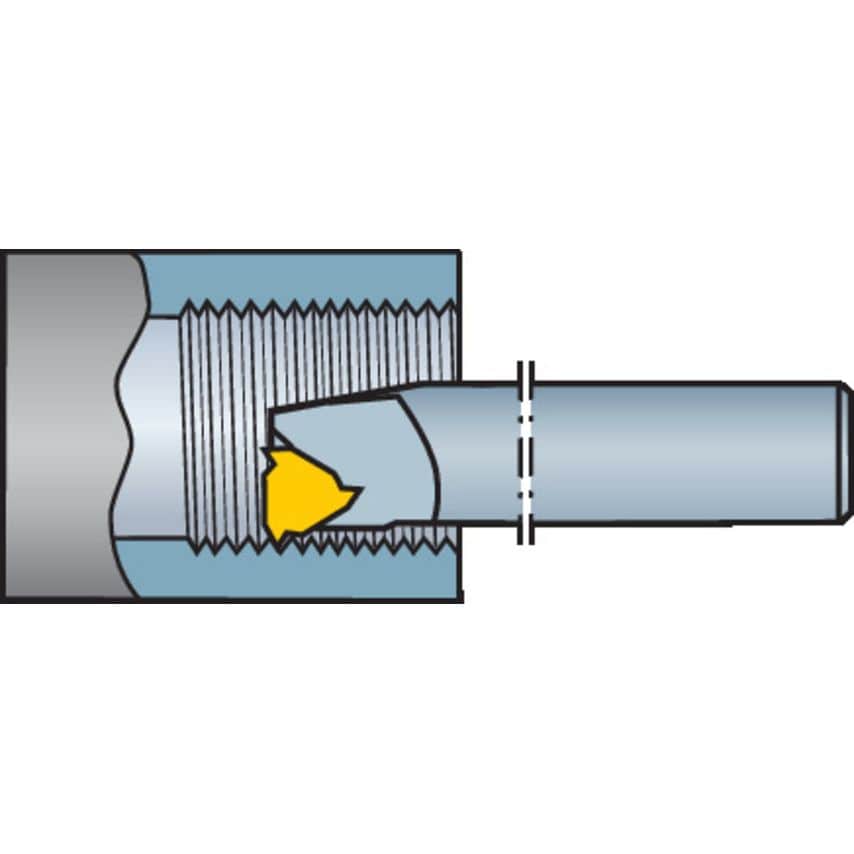

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.
| CoroPak | 11.1 |

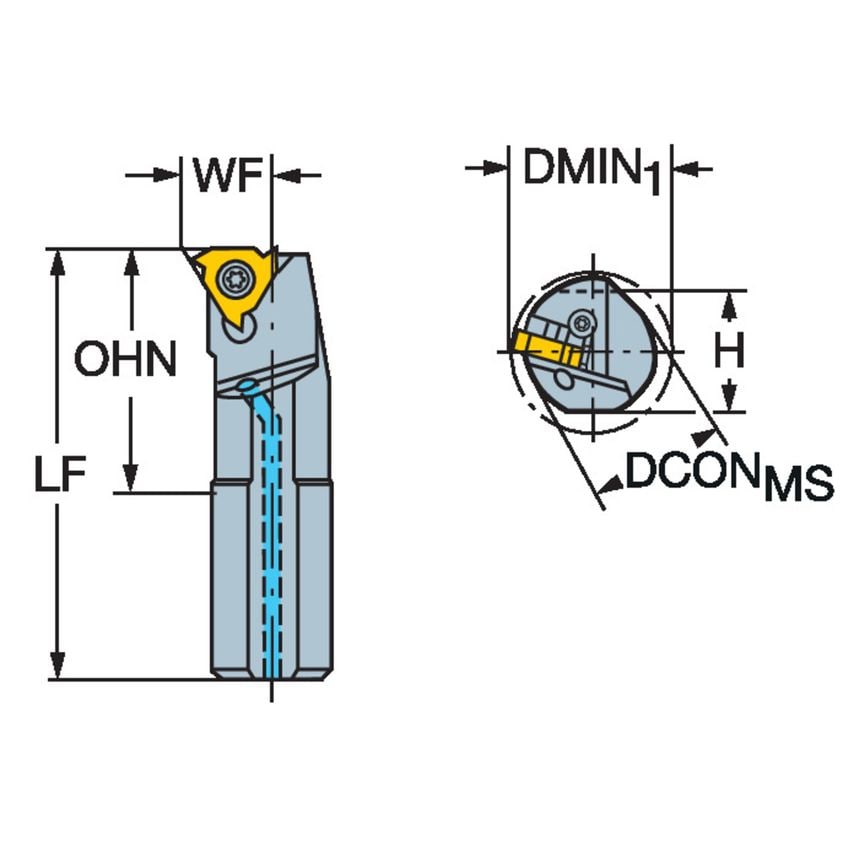

| Functional Length | 200mm |
| Hand Preference | Right |
| Weight | 0.25kg |
| Connection Diameter | 16mm |
| Body Diameter | 0.629921in |
| Unit Measured | Metric |
| MFR Part No. | 5961381 |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Minimum Bore Diameter | 20mm |
| Usable Length | 48mm |
| Maximum Overhang | 48mm |
| Axial Clearance Angle | 15\u00b0 |
| Machine Side Body Angle | 0\u00b0 |
