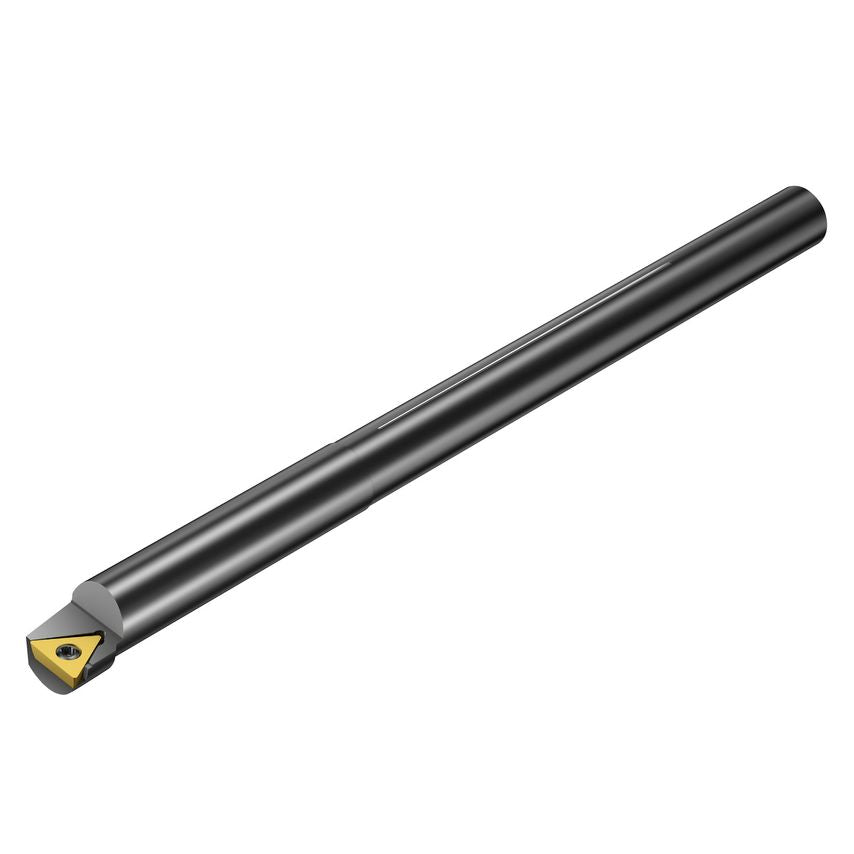

Product Range: CoroTurn 111CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.Benefits- Secure insert clamping- Excellent repeatability- Free chip flow- Low cutting forces- Excellent edge strengthFeatures- 11 degree clearance angle- Positive insert shape- Low cutting forces- Excellent edge strength- Screw clamping ensures stability and unobstructed chip flow- Tools with high pressure coolant- Insert geometries and grades for all materialsApplication- Machining of steel, stainless steel, cast iron, heat resistant super alloys, titanium, hardened materials, aluminium, non ferrous material- Finishing and medium roughing
| Weight | 0.3kg |
| Tool Cutting Edge Angle | 91 | 91\u00b0 |
| Coolant Entry Style | Without Coolant |
| Functional Length | 9.53mm |
| Maximum Overhang | 127mm |
| Unit Measured | Imperial |
| MFR Part No. | 5733373 |
| Coolant Exit Style | 0 |
| Maximum Ramping Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Connection Diameter | 10mm |
| Tool Lead Angle | -1 deg |
| Damping Property | Yes |
| Minimum Bore Diameter | 16.002mm |
| Hand Preference | Right |
| Body Material | Carbide |
| Machine Side Body Angle | 0\u00b0 |
| Body Diameter | 0.5in |
| CoroPak | 60 |
| Workpiece Side Body Angle | 0\u00b0 |
