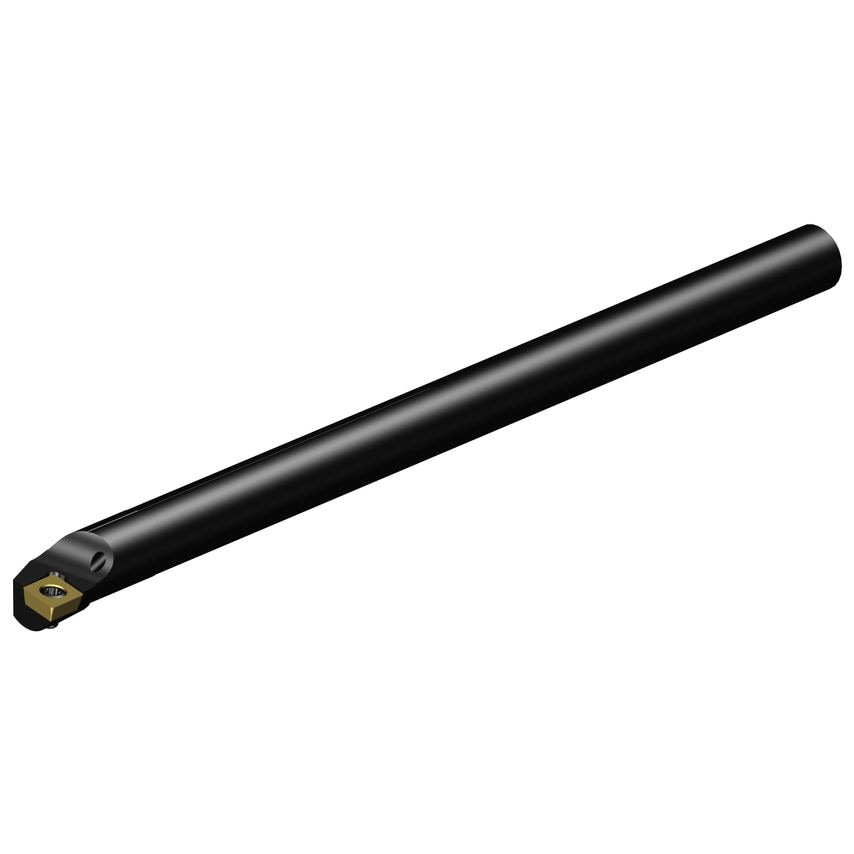

Product Range: CoroTurn 111CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.Benefits- Secure insert clamping- Excellent repeatability- Free chip flow- Low cutting forces- Excellent edge strengthFeatures- 11 degree clearance angle- Positive insert shape- Low cutting forces- Excellent edge strength- Screw clamping ensures stability and unobstructed chip flow- Tools with high pressure coolant- Insert geometries and grades for all materialsApplication- Machining of steel, stainless steel, cast iron, heat resistant super alloys, titanium, hardened materials, aluminium, non ferrous material- Finishing and medium roughing

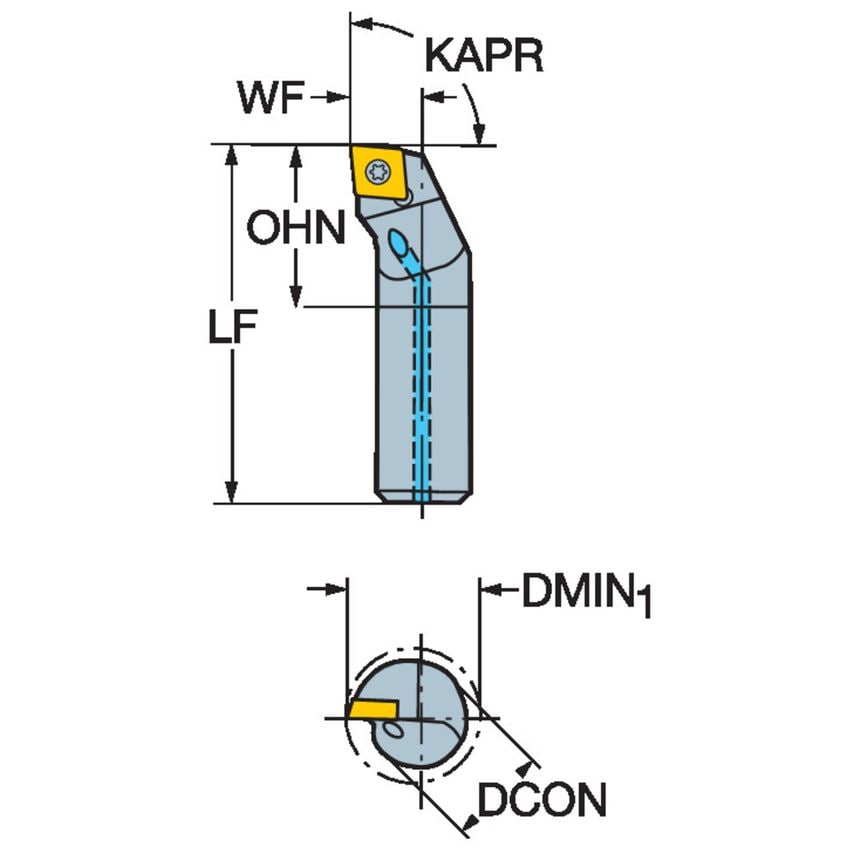

| Tool Lead Angle | -5 deg |
| Workpiece Side Body Angle | 0\u00b0 |
| Damping Property | No |
| Body Material | Carbide |
| Coolant Entry Style | 1 |
| Hand Preference | Right |
| Machine Side Body Angle | 0\u00b0 |
| Unit Measured | Imperial |
| Functional Length | 25mm |
| Maximum Ramping Angle | 0\u00b0 |
| CoroPak | 65 |
| Maximum Overhang | 57.15mm |
| Through Hole Function Property | Yes |
| Minimum Bore Diameter | 12.2mm |
| Tool Cutting Edge Angle | 95 | 95\u00b0 |
| Connection Diameter | 25.4mm |
| Coolant Exit Style | 3 |
| MFR Part No. | 5734200 |
| Body Diameter | 0.38in |
