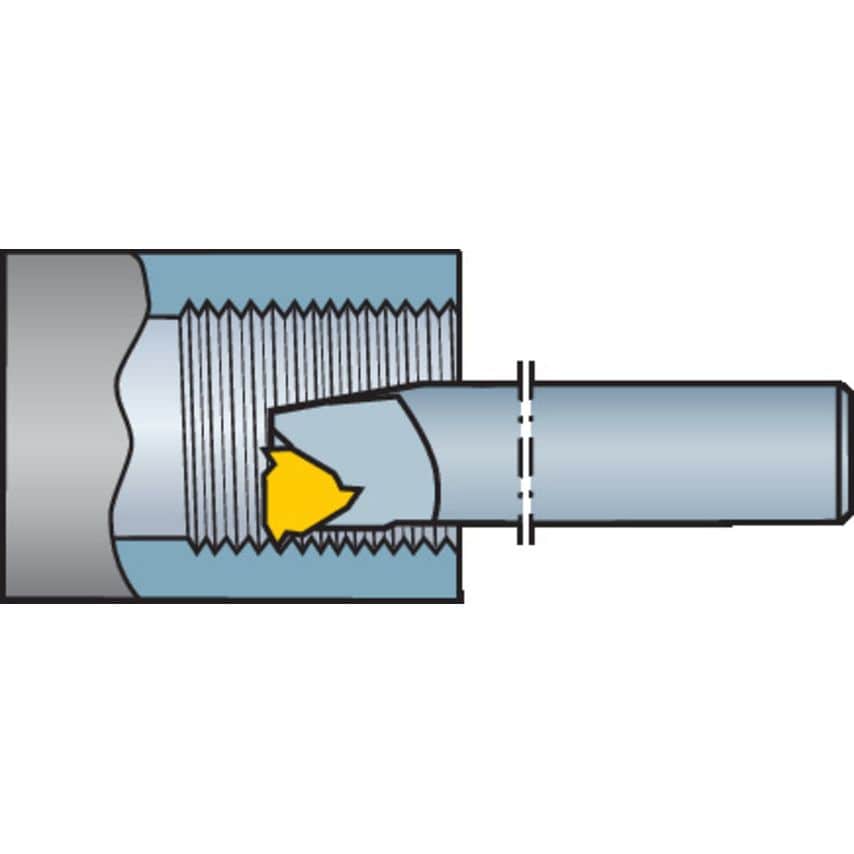

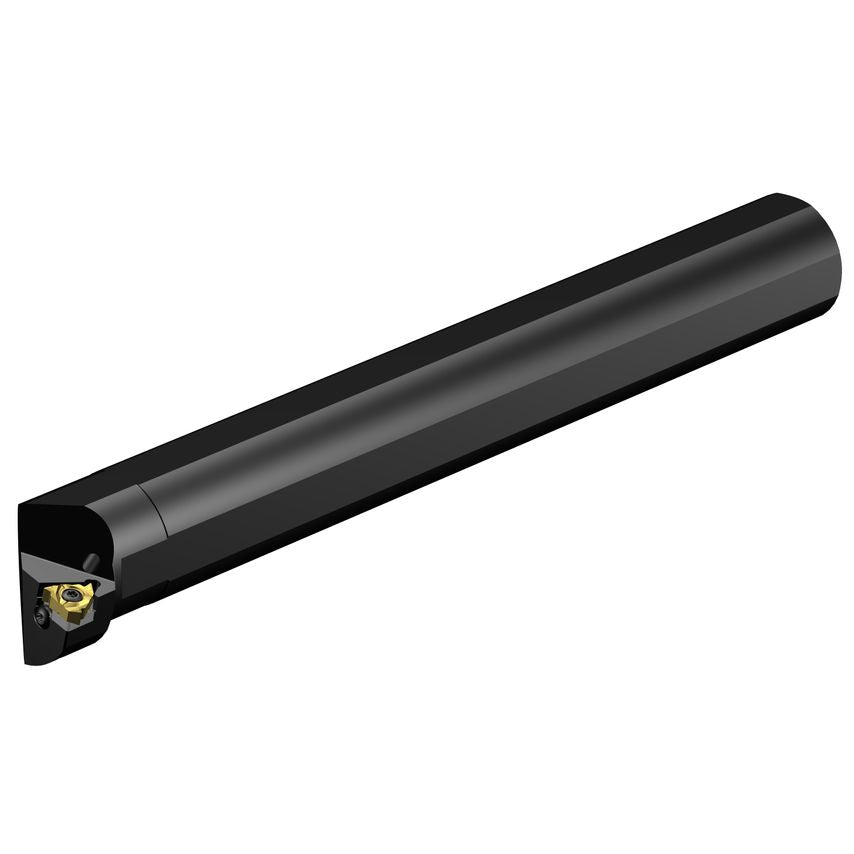

Product Range: CoroThread 266Highly rigid external and internal thread turningFeatures & Benefits- First choice for thread turning, iLock interface- Wide assortment of tools and thread profile inserts- Precision over and under coolant- Long tool life reduces costs- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.- Optimized geometries allow for reliable, predictable tool life in both through and blind hole applications.

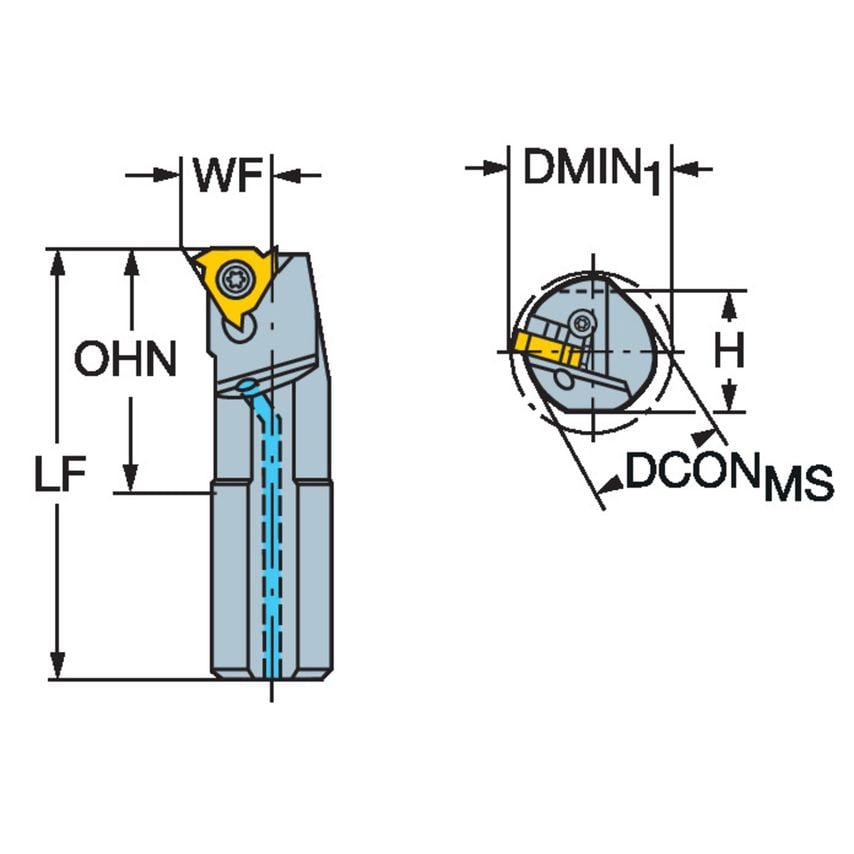

| Axial Clearance Angle | 15\u00b0 |
| Through Hole Function Property | Yes |
| Maximum Overhang | 152.4mm |
| Weight | 5.82kg |
| Connection Diameter | 16mm |
| Unit Measured | Imperial |
| Hand Preference | Right |
| Body Diameter | 2in |
| Coolant Entry Style | 1 |
| Machine Side Body Angle | 0\u00b0 |
| Minimum Bore Diameter | 62.992mm |
| MFR Part No. | 5758003 |
| Functional Length | 1.06mm |
| Usable Length | 152.4mm |
| CoroPak | 8 |
