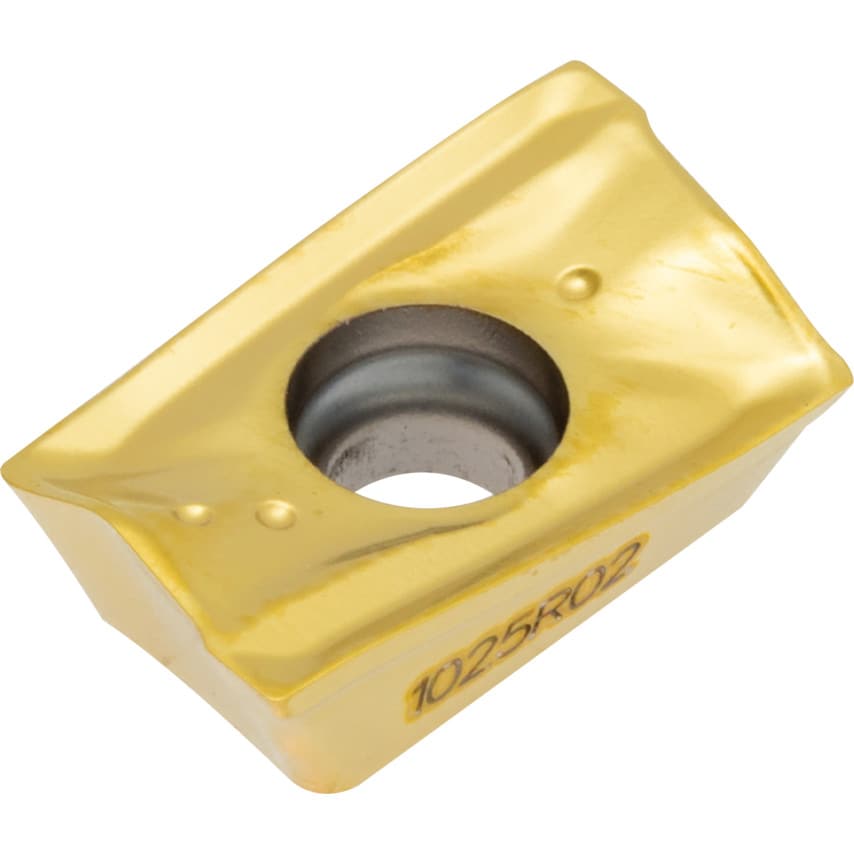

CoroMill R390 milling inserts are made from a hard carbide substrate for increased rigidity in machining applications. The tough PVD TICN+TIN coating helps prolong the tools lifespan by increasing resistance to wear and tear whilst also helping to protect against heat.
Features and Benefits
Hard carbide substrate for improved rigidity and stability
Tough PVD TICN+TIN coating helps prolong the tools lifespan
Excellent heat and wear resistant properties
Specifications
Insert Grade GC1025
P30 (P15-P30)M15 (M10-M20)N15 (N10-N25)S20 (S10-S20)H15 (H10-H20)
PVD coated
Typical Applications
Milling
Steel
Stainless steel
| Insert Style | R390 |
| Material Application | Hardened Steel | High-Temperature Alloys | Nonferrous Metals | Stainless Steels | Steels |
| Thickness | 3.59mm |
| ISO Designation | R390.11T302E-PM |
| Manufacturer Grade | 1025 |
| Cutting Direction | Right Hand |
| Insert Size | 11T3 |
| Corner Radius | 0.2 |
| ISO Category Grade | H | M | N | P | S |
| Finish/Coating | TiCN/TiN |
| Material | Carbide |
| ISO Cut | H10 to H20 | M10 to M20 | N10 to N25 | P15 to P30 | S10 to S20 |
| Chipbreaker | PM |
| Shape | Rectangle |
| Pack Quantity | 1 |
| Cutting Edge Length | 10.00mm |
