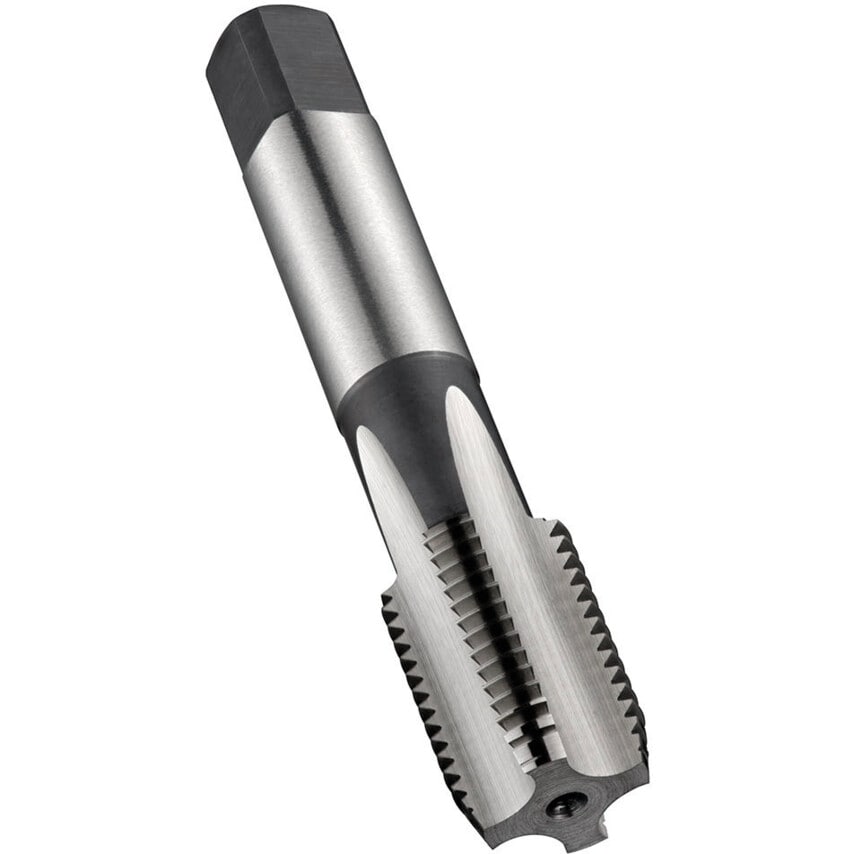

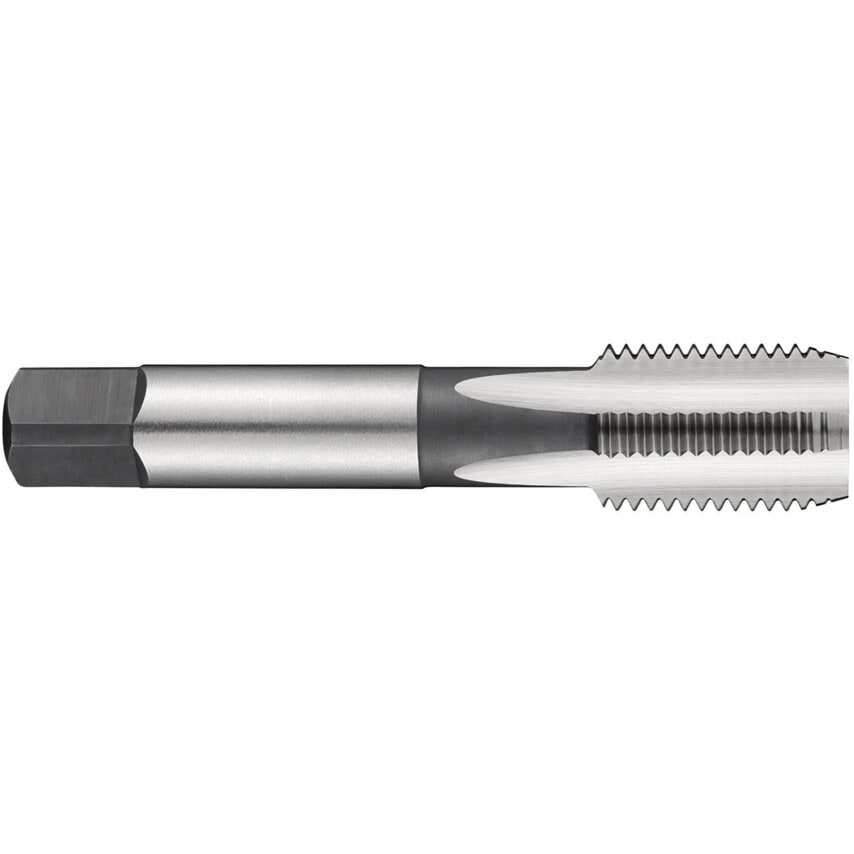

Series E547high speed steel straight flute plug tap
Features and Benefits
Range of thread sizes
Constructed to british standard pipe thread BSP
High speed steel
Bright finish
Normal thread
Thread Form G
1.5xD
Right hand thread direction
Typical Applications
Suitable for through and blind holes
Hand and machine tapping
Free machining
Plain carbon steel
Standards
Manufactured to ISO 2284
| Tap Type | Straight Flute |
| Square Width | 8.0mm |
| Series | E547 |
| Lead | Plug |
| Helix Angle | Normal |
| Thread Size | 1/4in |
| Dimensions Standard | ISO 2284 |
| Overall Length | 67.0mm |
| Chamfer | Plug |
| Pitch | 19 |
| Thread Standard | BSPF |
| Number of Flutes | 4 |
| Shank Diameter | 10.0mm |
| Finish/Coating | Bright |
| Thread Length | 19.0mm |
| ISO Category | K | N | P |
| Material | HSS |
| MFR Part No. | E5471/4NO3 |
| Thread Direction | Right Hand |
| Class of Fit | Normal |
| Teeth per Inch | 19 |
