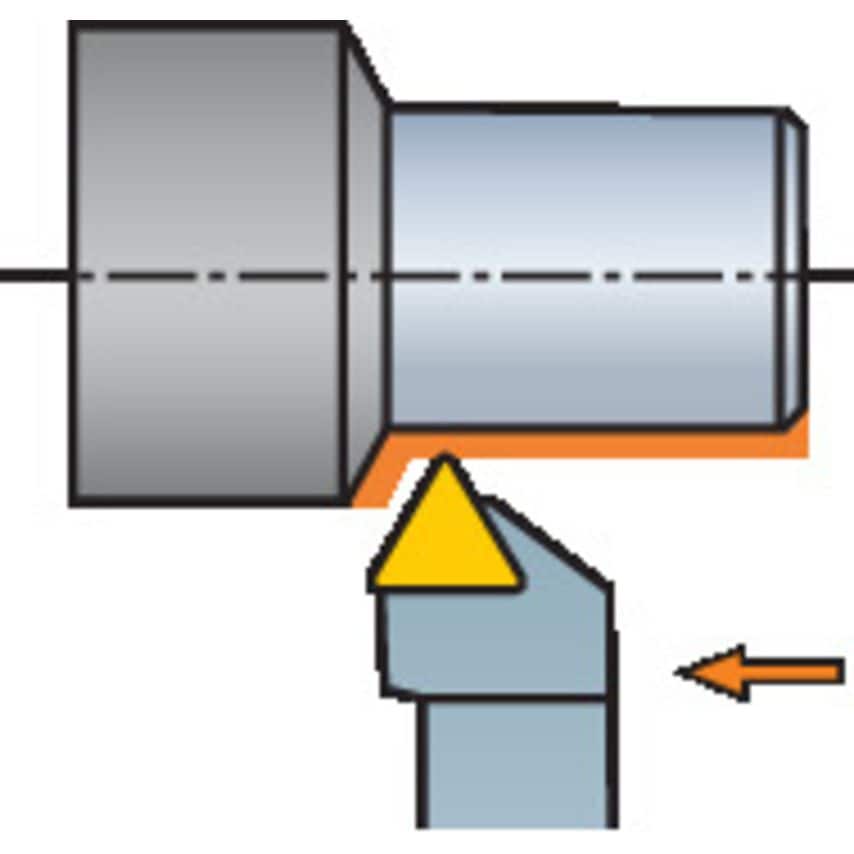

Tool type: External TurningFor productive turning of difficult to machine materialsStable insert clampingIt is very important to have a stable clamping while turning difficult-to-machine materials. T-Max offers stable clamping for both insert without hole and with dimple-hole.High performing gradesWith our latest Ceramic and solid CBN grades you can increase the cutting speeds to achieve higher metal removal rates and maximize production output.Reliable and secure machiningWide assortment of V-bottom and double-sided flat inserts and modern grades have strong edges that offer reliable and secure machining for all roughing to finishing operations.Features & Benefits- Turning tools with round ceramic inserts- For aerospace and other HRSA applications- Modular tools with Coromant Capto and SL70 couplingsExternal and internal turning- Longitudinal turning- Face turning- Profiling and pocketing- Roughing to finishing

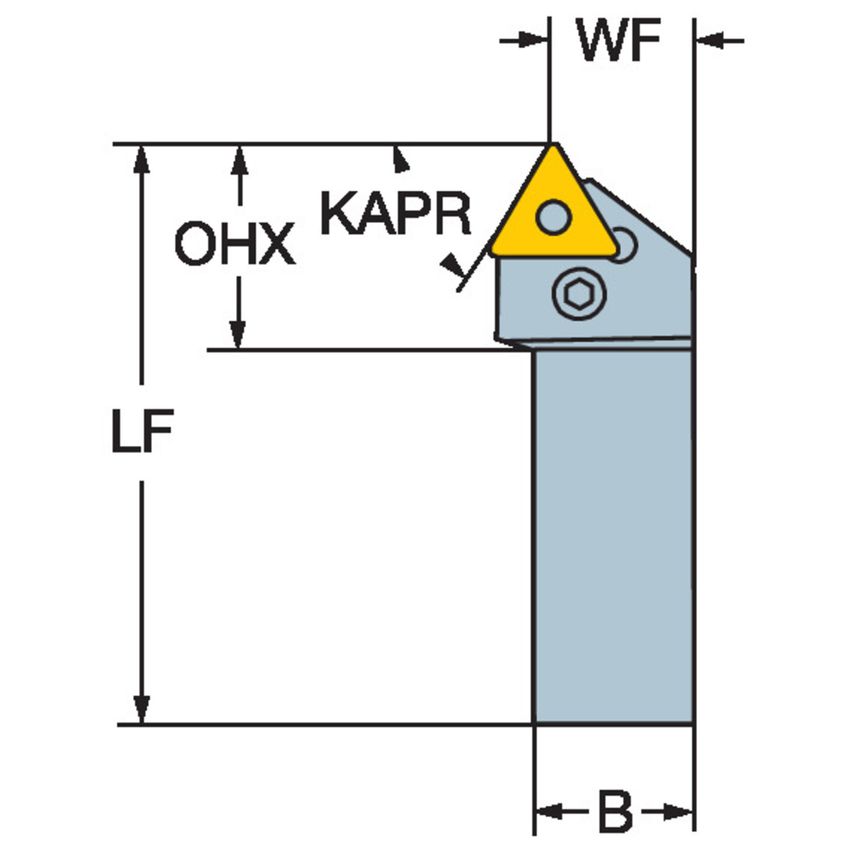

| Through Hole Function Property | Yes |
| Workpiece Side Body Angle | 0\u00b0 |
| Damping Property | No |
| Coolant Entry Style | Without Coolant |
| Hand Preference | Right |
| Weight | 0.4kg |
| Machine Side Body Angle | 0\u00b0 |
| Body Material | Steel |
| Tool Lead Angle | 30\u00b0 |
| Coolant Exit Style | 0 |
| Unit Measured | Metric |
| MFR Part No. | 10043526 |
| Maximum Overhang | 30.2mm |
| Tool Cutting Edge Angle | 60\u00b0 |
| CoroPak | 84.1 |
| Functional Length | 125mm |
| Maximum Ramping Angle | 30\u00b0 |
| Shank Width (b) | 20mm |
| Shank Width | 20mm |
