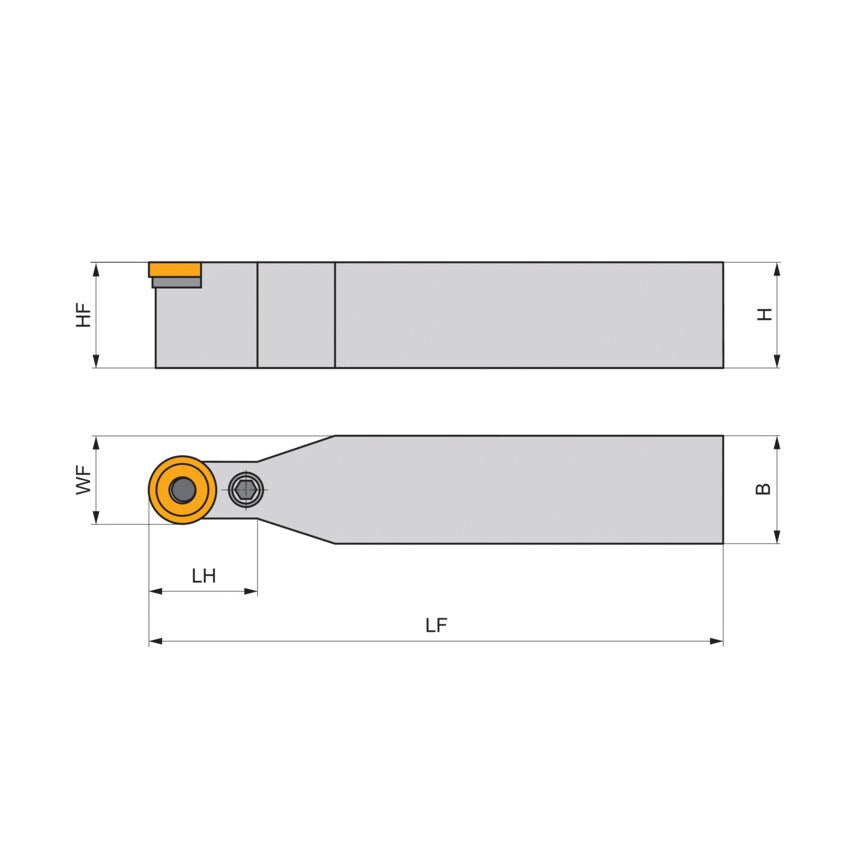

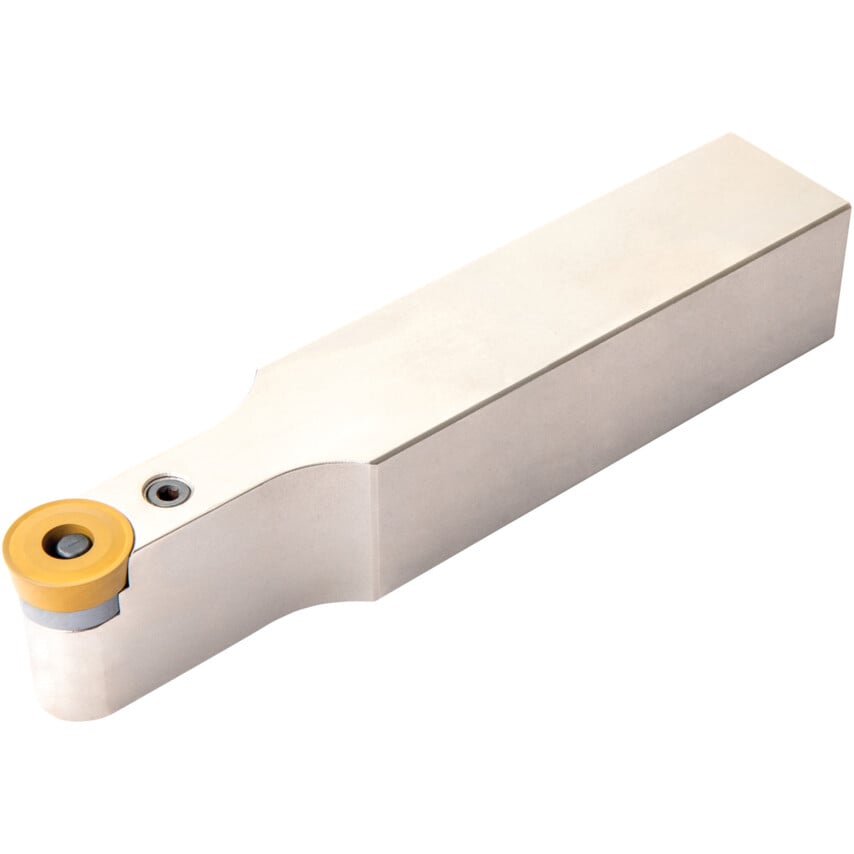

This lever-lock turning toolholder was designed to hold a round positive insert with a diameter of 32mm and a thickness of 9.52mm. The toolholder is neutral, so suitable for use with either hand. 50mm tool height x 50mm width x 400mm long for taper turning, single and multi-directional copy turning, and longitudinal turning without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
| Insert Shape | Round |
| Set Type | Individual Toolholder |
| Insert Style | RCMX |
| MFR Part No. | 8281353 |
| Shank Height (h) | 50mm |
| Toolholder Style | PRDC |
| Shank Width (b) | 50mm |
| Overall Length (l1) | 400mm |
| ISO Designation | PRDCN5050V32 |
| Insert Holding Type | Lever Lock |
