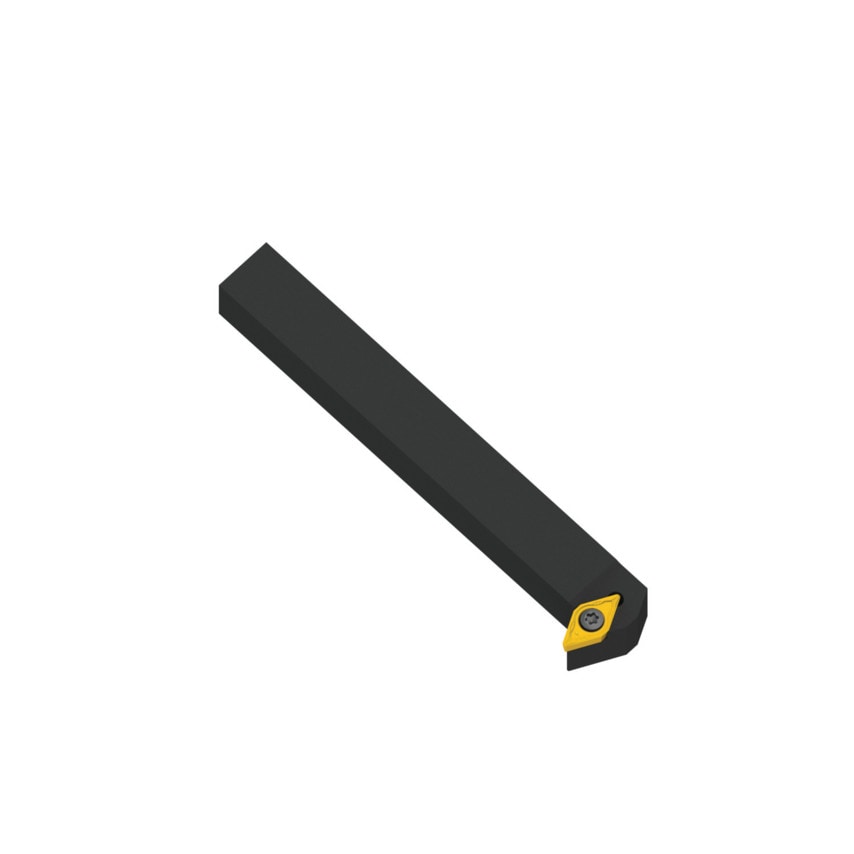

Sdxcl 1616 K 11-S External Turn Holder Left Hand

These screw clamp turning tool holders were designed to hold a 55 rhombus positive insert with an inscribed circle diameter of 9.525mm and a thickness of 3.97mm. Each tool holder is designed for left or right-handed use. 16mm tool height x 16mm width x 125mm long for taper turning, and longitudinal turning without shoulder. Features and Benefits Nickelized for higher oxidation and wear resistance Internal coolant channels improve insert tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened materials Cast iron Stainless steel Non-ferrous metals Steel Cast steel High-temperature alloys

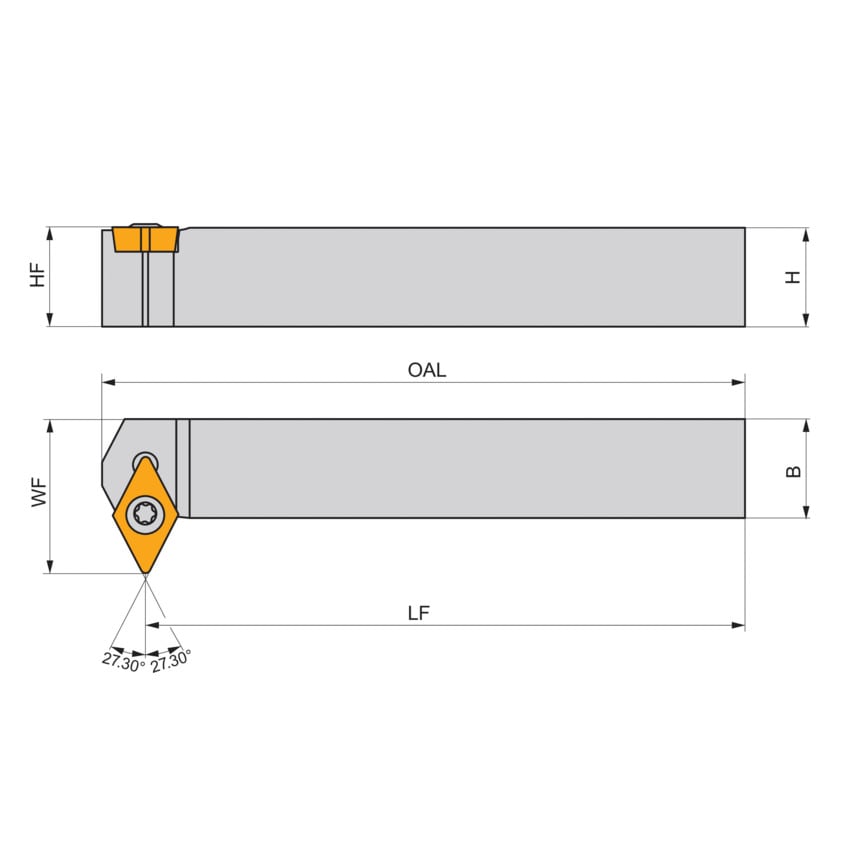

Overall Length (l1)	125mm
Insert Shape	55\u00b0 Rhombic
MFR Part No.	8181050
Toolholder Style	SDXC
Cutting Direction	Left Hand
Set Type	Individual Toolholder
Insert Holding Type	Screw clamp
ISO Designation	SDXCL 1616 K 11-S
Insert Style	DC
Insert Size	11T3
