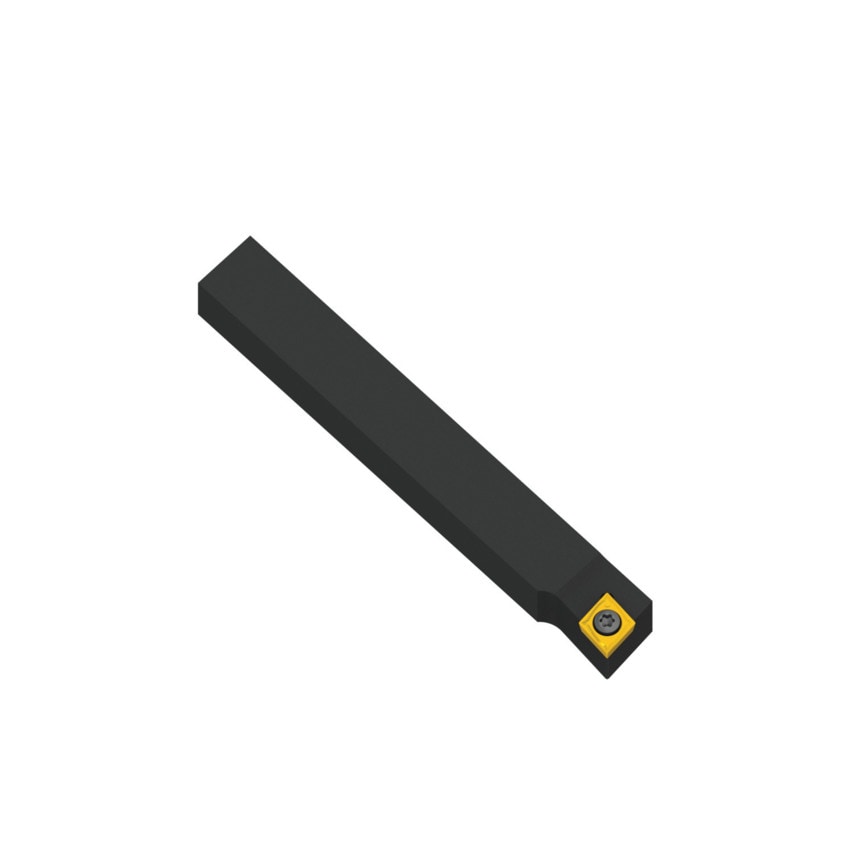

SCLCL 1616 K 09-S External Turn Holder Left Hand

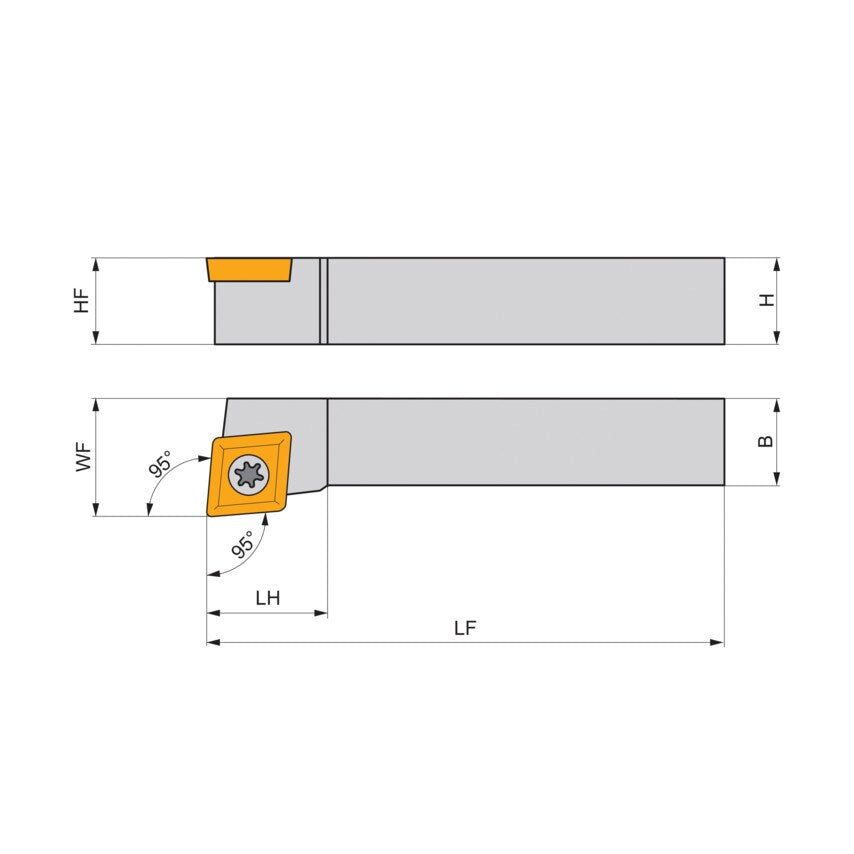

These screw clamp turning tool holders were designed to hold an 80 rhombus positive insert with an inscribed circle diameter of 9.525mm and a thickness of 3.97mm. Each tool holder is designed for left or right-handed use. 16mm tool height x 16mm width x 125mm long for taper turning, chamfering, and longitudinal turning without shoulder. Features and Benefits Nickelized for higher oxidation and wear resistance Internal coolant channels improve insert tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened materials Cast iron Stainless steel Non-ferrous metals Steel Cast steel High-temperature alloys

Toolholder Style	SCLC
Cutting Direction	Left Hand
Overall Length (l1)	125mm
MFR Part No.	8181035
Insert Style	CCMT
Insert Size	09T3
Insert Holding Type	Screw clamp
Insert Shape	80\u00b0 Rhombic
Set Type	Individual Toolholder
ISO Designation	SCLCL 1616 K 09-S
