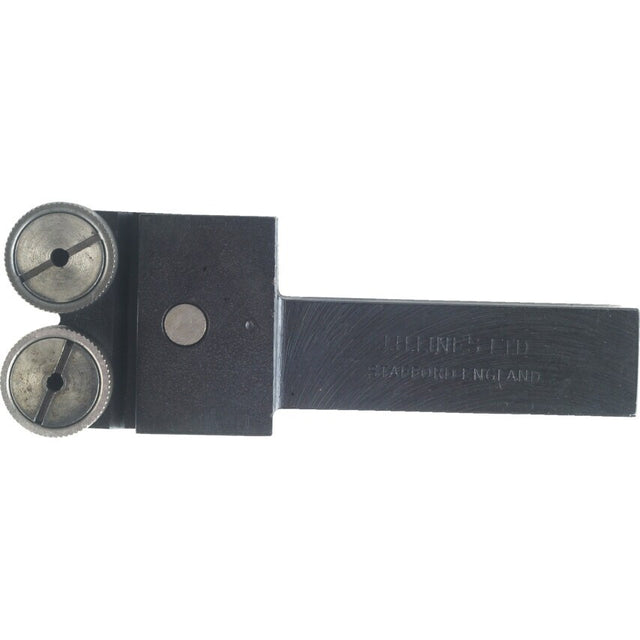

Machine ground high grade steel, black mottle finish.
Self-adjusting head. Knurls available separately.
For use with knurl size 5/8" x 5/16" x 7/32".
| Size | 3-3/8 x 13/16 x 1in |
| Shank Height | 25mm |
| Insert Size | 25 x 10 x 16mm |
| Shank Width | 20mm |
| Product Type | Side Holder |
| Knurls Fitted | - 3110B and - 3210B |
| Overall Length | 85mm |
| Toolholder Application | Up to Face | Up to Shoulder |
| Compatible Knurl Bore Diameter | 16mm |
| Compatible Knurl Dimensions | 25 x 10 x 16mm |
| Compatible Knurl Diameter | 25mm |
| Number of Knurls Held | 2 |
| MFR Part No. | 90-861502 |
| Compatible Knurl Face Width | 10mm |
