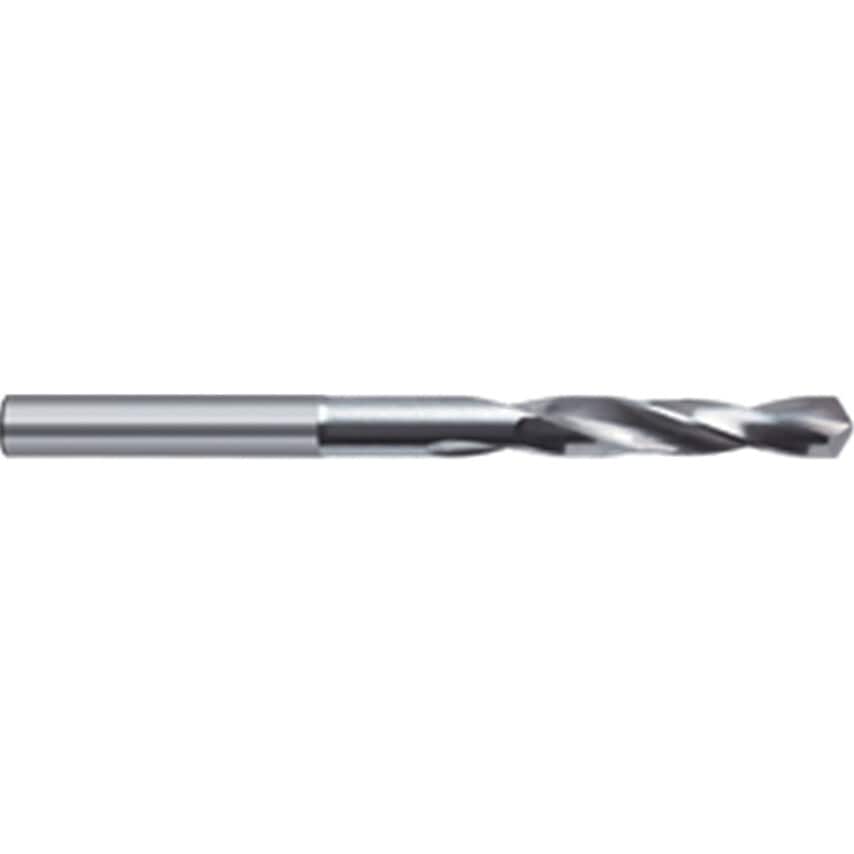

Series 305 HSCo Straight Shank Jobber Drills
HSCo general purpose jobber drill with increase wear resistance for use on universal steels,hardened materials and cast iron.
Inch sizes 1/64" to 25/32"
5xD
Form A web thinned
Steam oxide coated >2.36mm
Manufactured to DIN 338
Relieved cone
Finish/Coating | Bright |
Drill Diameter Inch | 5/64in |
Number of Flutes | 2 |
Flute Construction | Ground flutes |
Cutting Direction | Right Hand |
MFR Part No. | 00305 001.980 |
Overall Length | 49mm |
Flute Length | 24mm |
Shank Diameter Tolerance | H8 |
Drill Diameter | 1.98mm |
Series | 305 |
Material | Cobalt High Speed Steel |
Drill Diameter Tolerance | H8 |
Coolant Delivery | External |
Standards Met | DIN 338 |
Helix Type | Normal Helix |
Flute Type | Spiral |
Point Angle | 118\u00b0 |
Drill Diameter Metric | 1.98mm |
