£0.24

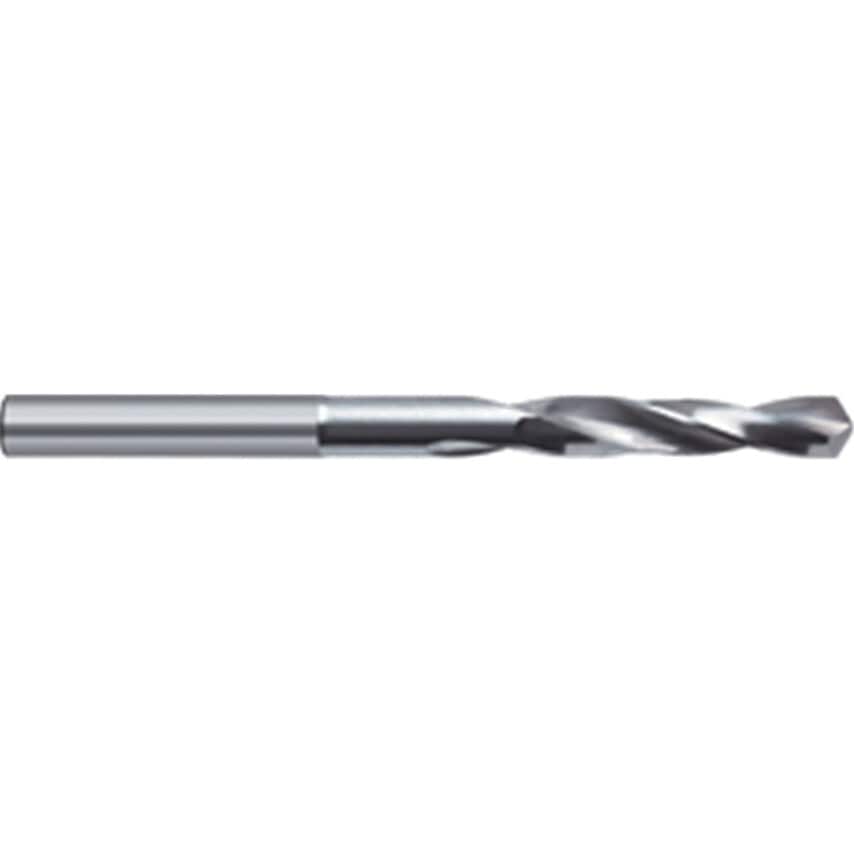

Series 305 HSCo Straight Shank Jobber Drills
HSCo general purpose jobber drill with increase wear resistance for use on universal steels,hardened materials and cast iron.
Inch sizes 1/64" to 25/32"
5xD
Form A web thinned
Steam oxide coated >2.36mm
Manufactured to DIN 338
Relieved cone
Drill Diameter Tolerance | H8 |
Standards Met | DIN 338 |
MFR Part No. | 00305 003.570 |
Coolant Delivery | External |
Series | 305 |
Finish/Coating | Steam Oxide |
Flute Length | 39mm |
Drill Diameter Metric | 3.57mm |
Flute Construction | Ground flutes |
Flute Type | Spiral |
Cutting Direction | Right Hand |
Material | Cobalt High Speed Steel |
Drill Diameter Inch | 9/64in |
Number of Flutes | 2 |
Helix Type | Normal Helix |
Drill Diameter | 3.57mm |
Overall Length | 70mm |
Shank Diameter Tolerance | H8 |
Point Angle | 118\u00b0 |
