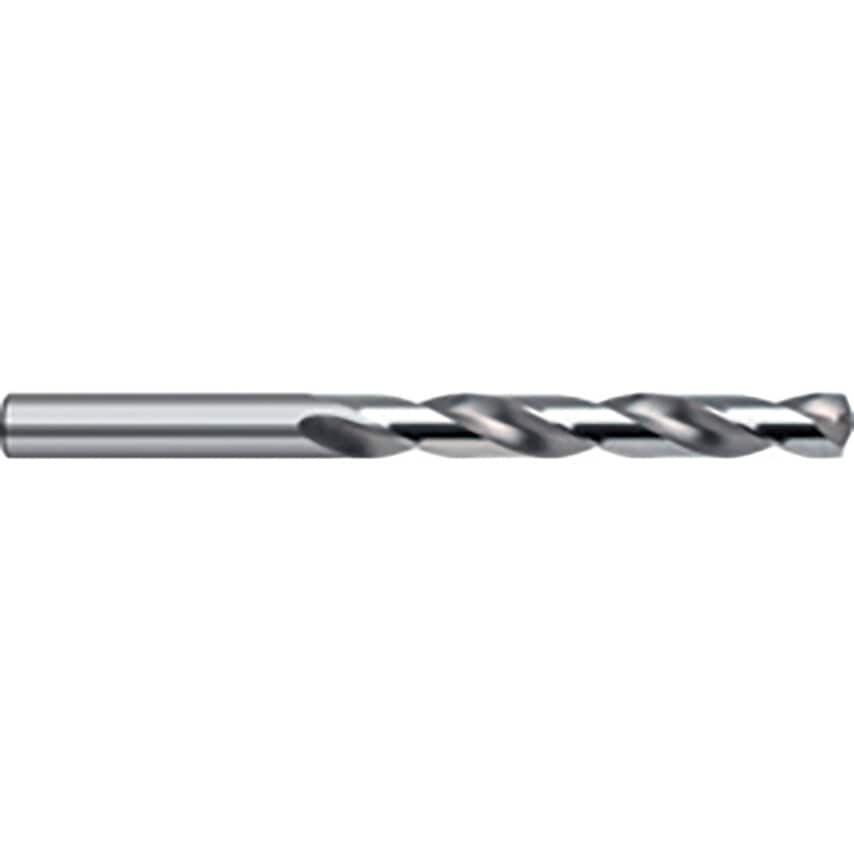

Series 1146 M42 straight shank jobber drills high wear resistance for use on stainless steels, wear resistant sheet metals, hastelloy, inconnel, steels/bronze up to 1400 M/mm.
Features and Benefits
M42 Cobalt high speed steel construction for greater toughness
High wear resistance for prolonged tool lifespan
Available in a range of metric sizes
Typical Applications
Drilling
Web Thickness | Web Thinning |
Helix Type | Normal Helix |
Flute Length | 81mm |
Point Type | Conventional |
Cutting Direction | Right Hand |
Standards Met | DIN 338 |
Overall Length | 125mm |
Series | 1146 |
Drill Diameter | 9mm |
Coolant Delivery | External |
Point Angle | 135\u00b0 |
Material | Cobalt High Speed Steel |
Number of Flutes | 2 |
Shank Diameter Tolerance | F11 |
Flute Type | Spiral |
Product Type | Jobber Drills |
Finish/Coating | Bright |
Drill Diameter Tolerance | H8 |
Flute Construction | Ground flutes |
Drill Diameter Metric | 9mm |
Size | 9mm |
MFR Part No. | 01146 009.000 |
