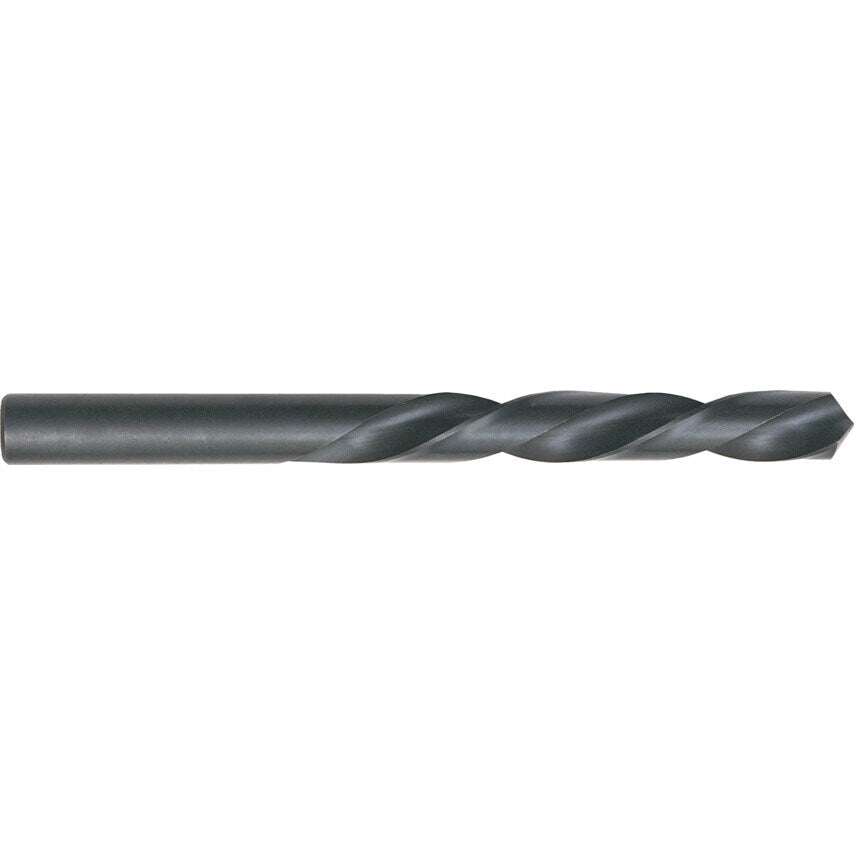

The Series 205 range of jobber drills from Guhring are suitable for drilling steel, cast steel, alloyed and unalloyed, grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite. Featuring a hardy HSS construction and a steam oxide coating for greater wear, heat resistance and chip flow.
Features and Benefits
High-speed steel construction for increased rigidity
Steam (black) oxide coating for increased resistance to heat and wear
Improved chip flow ideal for use with ferrous materials
Standards
Manufactured to BS 328, DIN338RN
Typical Applications
Drilling
Cast iron
Steel
German silver
Graphite
| Material | HSS |
| MFR Part No. | 00205 016.270 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Depth x Diameter Ratio | 5xD |
| Flute Length | 125mm |
| Flute Construction | Ground flutes |
| Overall Length | 184mm |
| Standards Met | BS 328 | DIN 338RN |
| Helix Type | Normal Helix |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Finish/Coating | Steam Oxide |
| Drill Diameter Inch | 41/64in |
| Series | 205 |
| Product Type | Jobber Drills |
| Drill Diameter | 41/64in |
