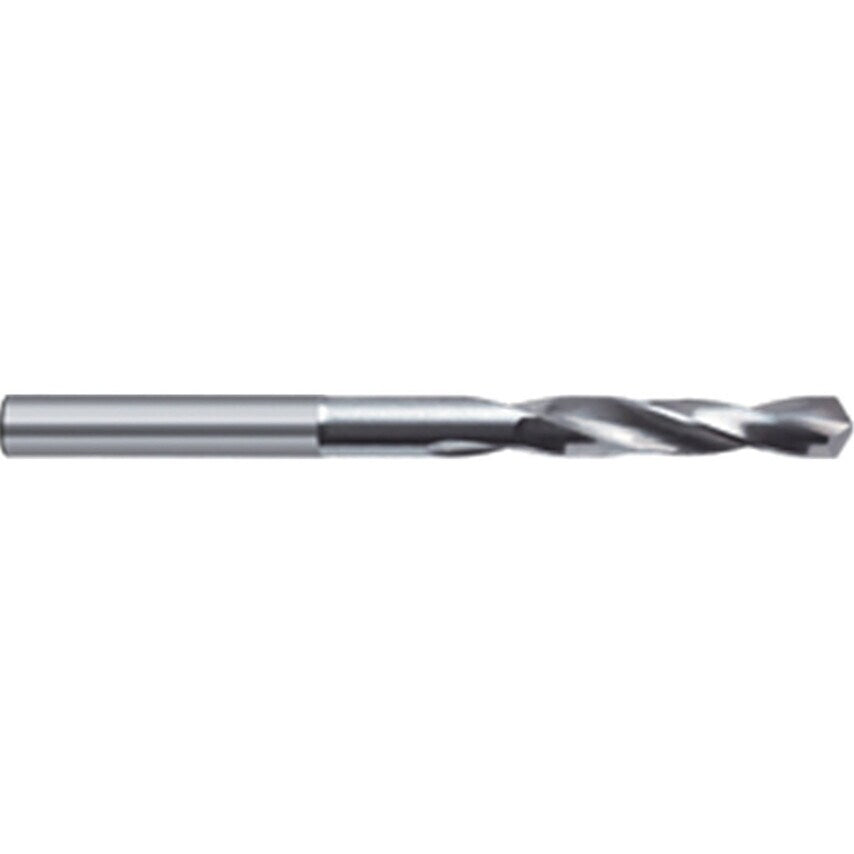

Series 305 HSCo Straight Shank Jobber Drills
HSCo general purpose jobber drill with increase wear resistance for use on universal steels,hardened materials and cast iron.
Inch sizes 1/64" to 25/32"
5xD
Form A web thinned
Steam oxide coated >2.36mm
Manufactured to DIN 338
Relieved cone
| Finish/Coating | Bright |
| Shank Diameter Tolerance | H8 |
| Flute Construction | Ground flutes |
| Drill Diameter Inch | 1/16in |
| Helix Type | Normal Helix |
| MFR Part No. | 00305 001.590 |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| Material | Cobalt High Speed Steel |
| Standards Met | DIN 338 |
| Series | 305 |
| Drill Diameter | 1.59mm |
| Overall Length | 43mm |
| Flute Type | Spiral |
| Point Angle | 118\u00b0 |
| Drill Diameter Metric | 1.59mm |
| Flute Length | 20mm |
| Coolant Delivery | External |
| Number of Flutes | 2 |
