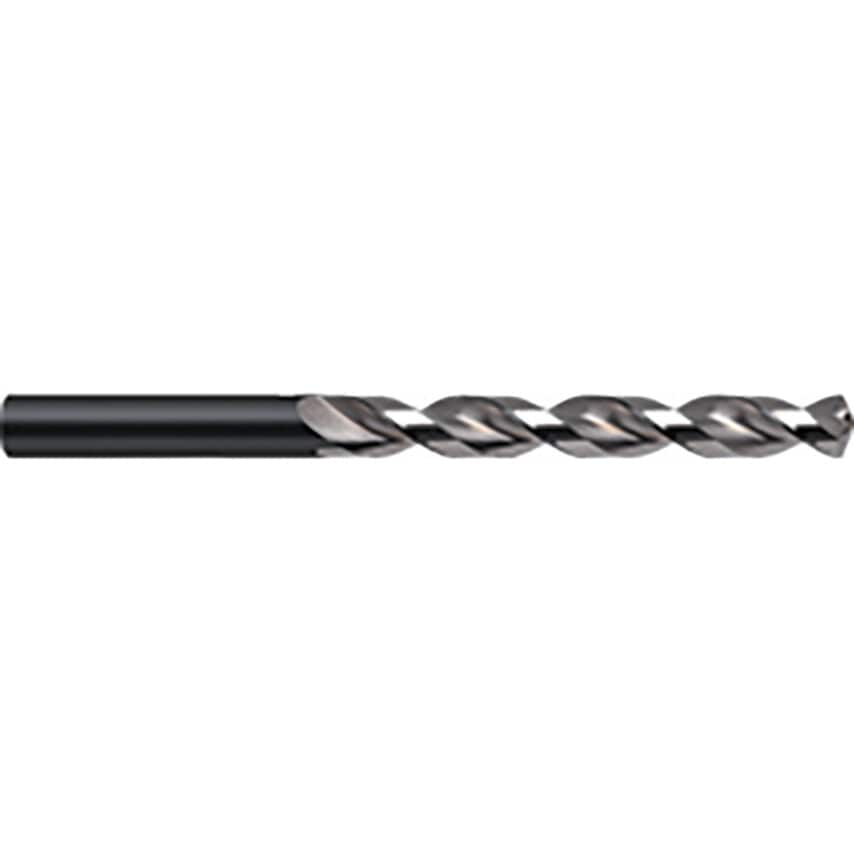

Series 622 HSCo GT100 High Helix (Parabolic Flute) Straight Shank Jobber Drills
Metric
High heat resistant drill with wide chip space. Suitable for drilling alloyed and unalloyed steels and castings with a high tensile strength over 800N/mm2. Particularly suitable for drilling hot and cold rolled steels. Manufactured to BS 328, DIN338RN.
| Shank Type | Straight |
| Drill Diameter Tolerance | H8 |
| Size | 5.8mm |
| Point Angle | 130\u00b0 |
| Material | Cobalt High Speed Steel |
| Flute Construction | Ground flutes |
| Product Type | Jobber Drills |
| Flute Length | 57mm |
| Point Type | Thinned Point |
| Web Thickness | Form A Web-thinned |
| Type | Jobber Drills |
| Flute Type | Parabolic |
| Helix Type | GT 100 |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Diameter | 5.8mm |
| Series | 622 |
| Drill Diameter | 5.8mm |
| Shank Diameter Tolerance | H8 |
| Overall Length | 93mm |
| Finish/Coating | Nitride Lands |
