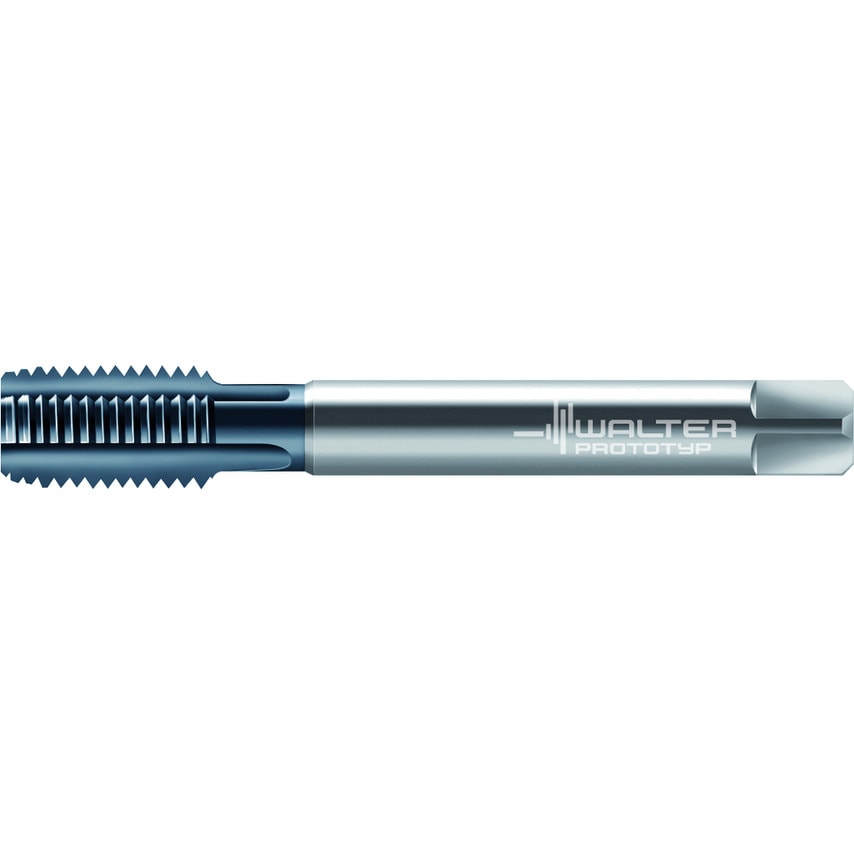

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 neutral (straight) flute 0 Suitable for blind hole TICN MF 22x1.5 P=0.0591in
| Cutting Edge Length | 24mm |
| Thread Pitch | 1.5mm |
| Tool Designation | E2136416-M22X1.5 |
| MFR Part No. | 5603185 |
| Functional Length | 125mm |
| Clamping Width | 14.5mm |
| Usable Length | 78mm |
| Thread Size | MF 22x1.5 |
| Driving Square Length | 17mm |
| Connection Diameter | 18mm |
| Number of Grooves | 5 |
