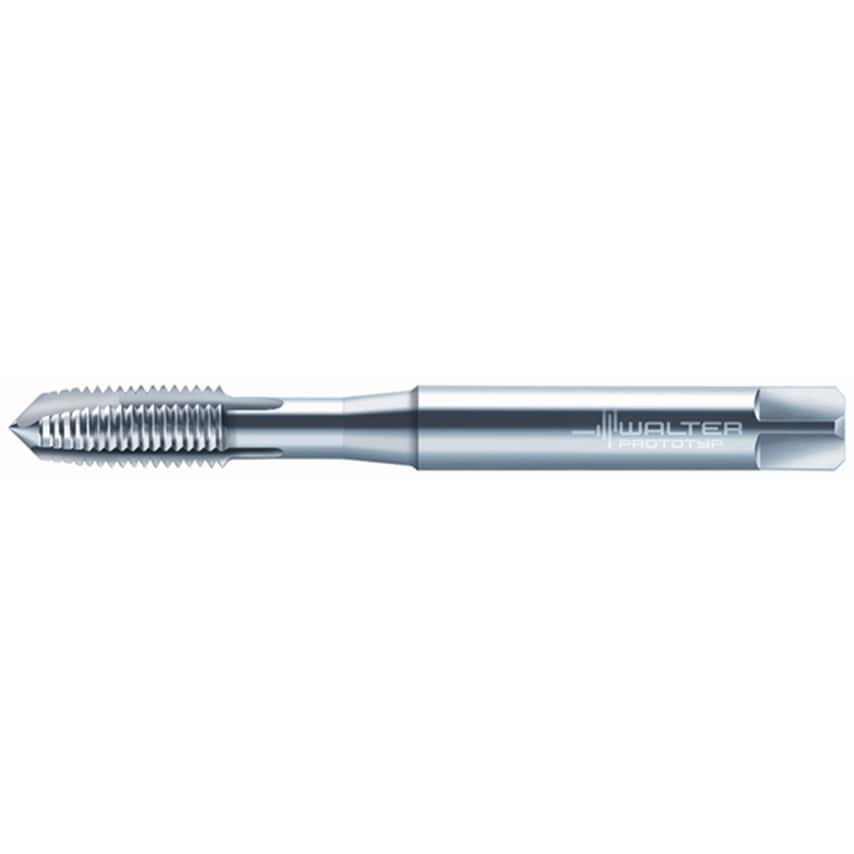

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD M/6H DIN 371 Suitable for through hole M 10 P=0.0591in
| Series | Prototex\u00ae X\u00b7pert P |
| Shank Diameter | 10mm |
| Material | HSSE |
| ISO Designation | P20310-M10 |
| MFR Part No. | 6149149 |
| Dimensions Standard | DIN 371 |
| Clamping Width | 8mm |
| Thread Pitch | 1.5mm |
| Thread Size | M10 |
| Pitch | 1.5mm |
| Usable Length | 39mm |
| Tool Designation | P20310-M10 |
| Number of Grooves | 3 |
| Thread Standard | Metric |
| Tap Type | Spiral Point |
| Cutting Edge Length | 20mm |
| ISO Category | O |
| Finish/Coating | Uncoated |
| Overall Length | 100mm |
| Driving Square Length | 11mm |
