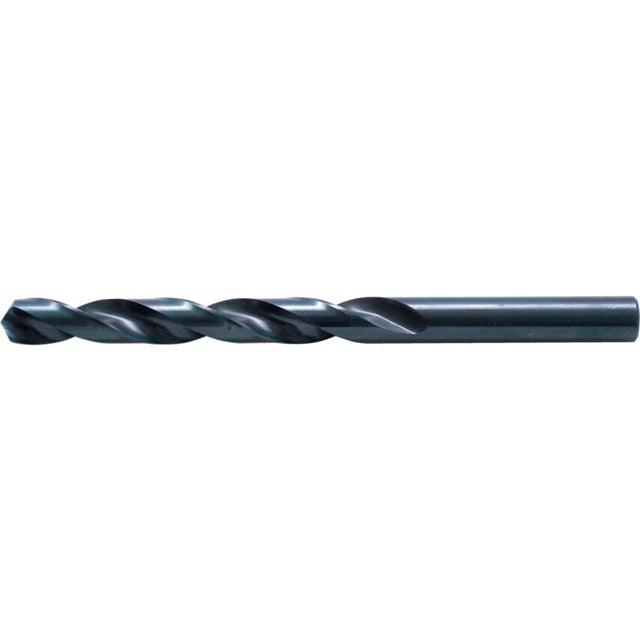

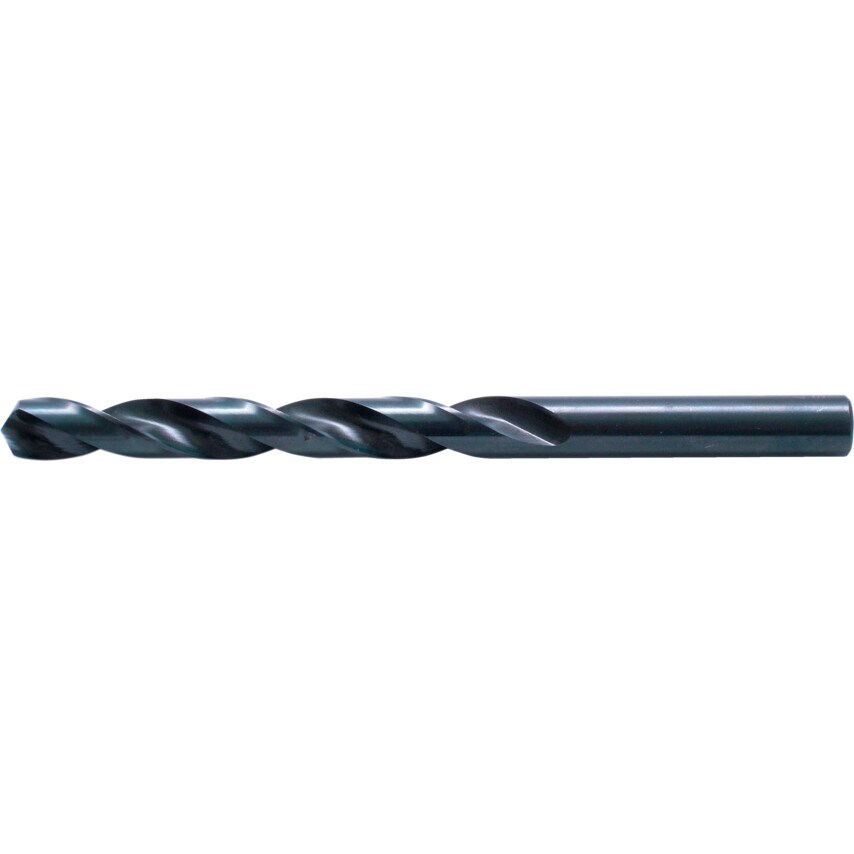

A1211 1/8" S/S Jobber Drill

Series A1211 General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118, helix angle: normal, web thickness: standard, relief angle: 10 - 20, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328/DIN338RN. Black Finish (W-Finish) This is the most common surface finish and is the result of a steam tempering operation in which steam is passed over the product during a controlled tempering cycle, producing a black oxide layer. Black tools are generally recommended for ferrous applications where the oxide layer aids chip flow, helps to dissipate heat by retaining some coolant on the tool surface and also helps to prevent the tool from staining.

Overall Length	65mm
Shank Diameter Tolerance	F11
MFR Part No.	5058567
Product Type	Jobber Drills
Web Thickness	Standard
Number of Flutes	2
Material	HSS
Standards Met	DIN338
Coolant Delivery	External
Drill Diameter Tolerance	H8
Flute Length	36mm
Series	A1211
Point Angle	118\u00b0
Drill Diameter Inch	1/8in
Drill Diameter	1/8in
