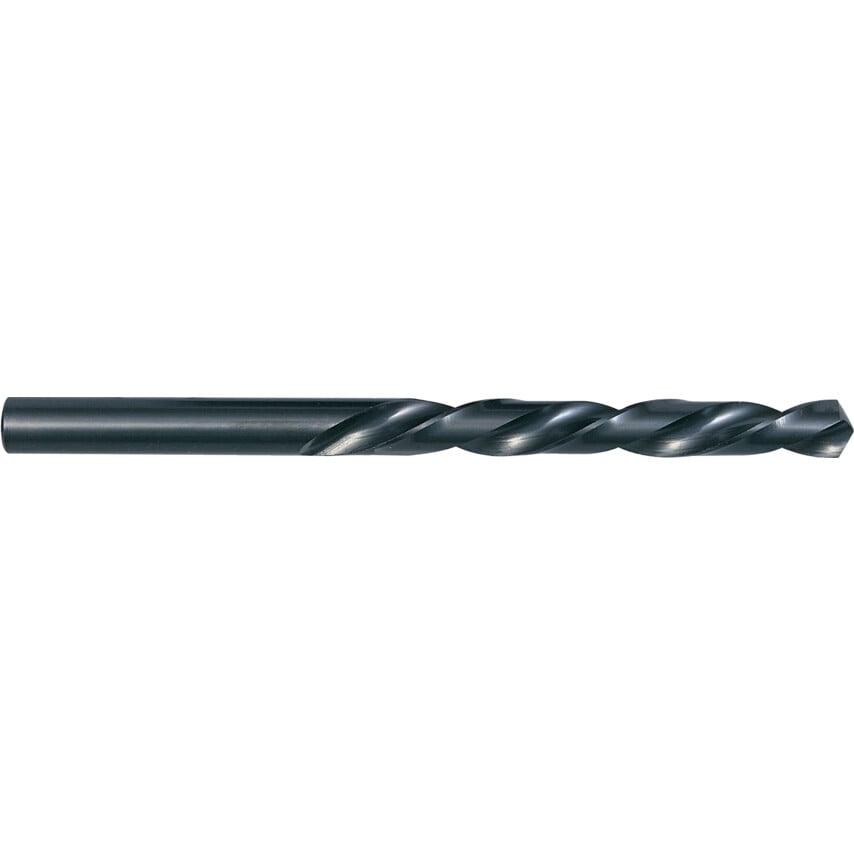

A1211 0.65mm S/S Jobber Drill

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Made from high speed steel with a black oxide coating for excellent heat and wear resistance during applications. Features and Benefits Made from high speed steel for increased rigidity and strength Black oxide coating for greater heat and wear resistance Specifications Point angle: 118 Tolerance of diameter: h8 Tolerance of shank: f11 Black finish (W-Finish), up to 3.00mm bright finish BS 328/DIN338RN Typical Applications Steels Cast steels Grey cast iron Malleable cast steel Cast iron Nickel Brass Aluminum alloy Graphite

Web Thickness	Standard
Coolant Delivery	External
Series	A1211
Flute Construction	Ground flutes
Standards Met	BS 328 | DIN 338
Drill Diameter Tolerance	H8
Overall Length	26mm
Helix Type	Normal Helix
Cutting Direction	Right Hand
Shank Diameter Tolerance	F11
Flute Type	Spiral
Number of Flutes	2
Finish/Coating	Bright
Product Type	Jobber Drills
Point Angle	118\u00b0
Size	0.65mm
MFR Part No.	5058427
Drill Diameter Metric	0.65mm
Material	HSS
Drill Diameter	0.65mm
Flute Length	8mm
