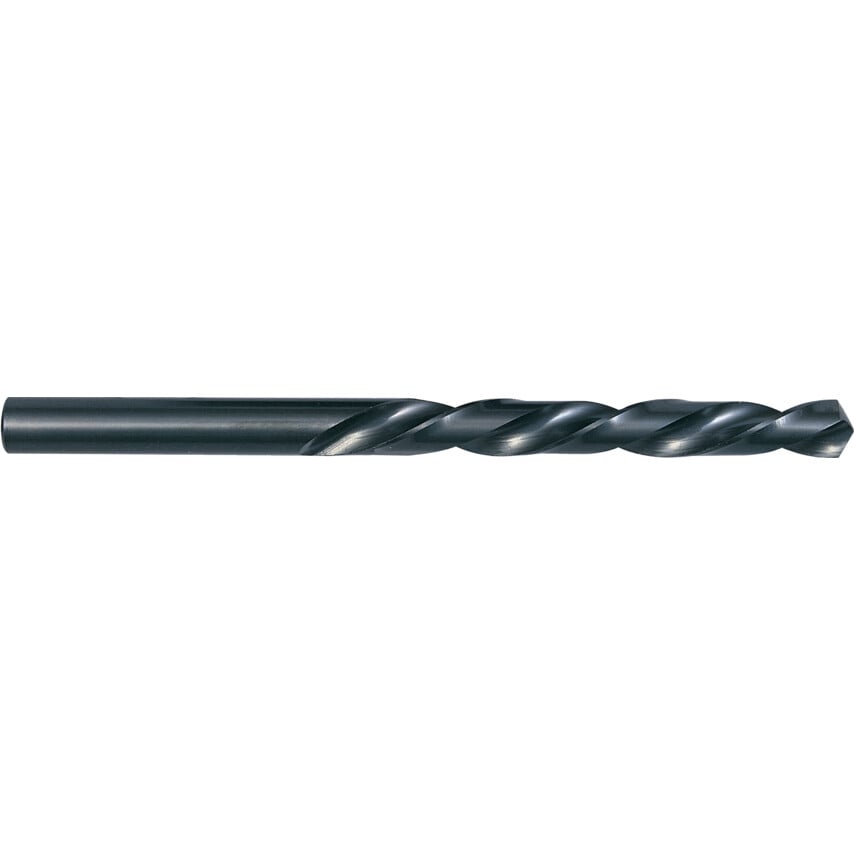

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Made from high speed steel with a black oxide coating for excellent heat and wear resistance during applications.
Features and Benefits
Made from high speed steel for increased rigidity and strength
Black oxide coating for greater heat and wear resistance
Specifications
Point angle: 118
Tolerance of diameter: h8
Tolerance of shank: f11
Black finish (W-Finish), up to 3.00mm bright finish
BS 328/DIN338RN
Typical Applications
Steels
Cast steels
Grey cast iron
Malleable cast steel
Cast iron
Nickel
Brass
Aluminum alloy
Graphite
| MFR Part No. | 5058787 |
| Coolant Delivery | External |
| Helix Type | Normal Helix |
| Series | A1211 |
| Flute Type | Spiral |
| Drill Diameter | 5.8mm |
| Overall Length | 93mm |
| Product Type | Jobber Drills |
| Finish/Coating | Black Oxide |
| Standards Met | BS 328 | DIN 338 |
| Size | 5.8mm |
| Flute Construction | Ground flutes |
| Flute Length | 48mm |
| Drill Diameter Tolerance | H8 |
| Drill Diameter Metric | 5.8mm |
| Shank Diameter Tolerance | F11 |
| Number of Flutes | 2 |
| Material | HSS |
| Point Angle | 118\u00b0 |
| Web Thickness | Standard |
| Cutting Direction | Right Hand |
