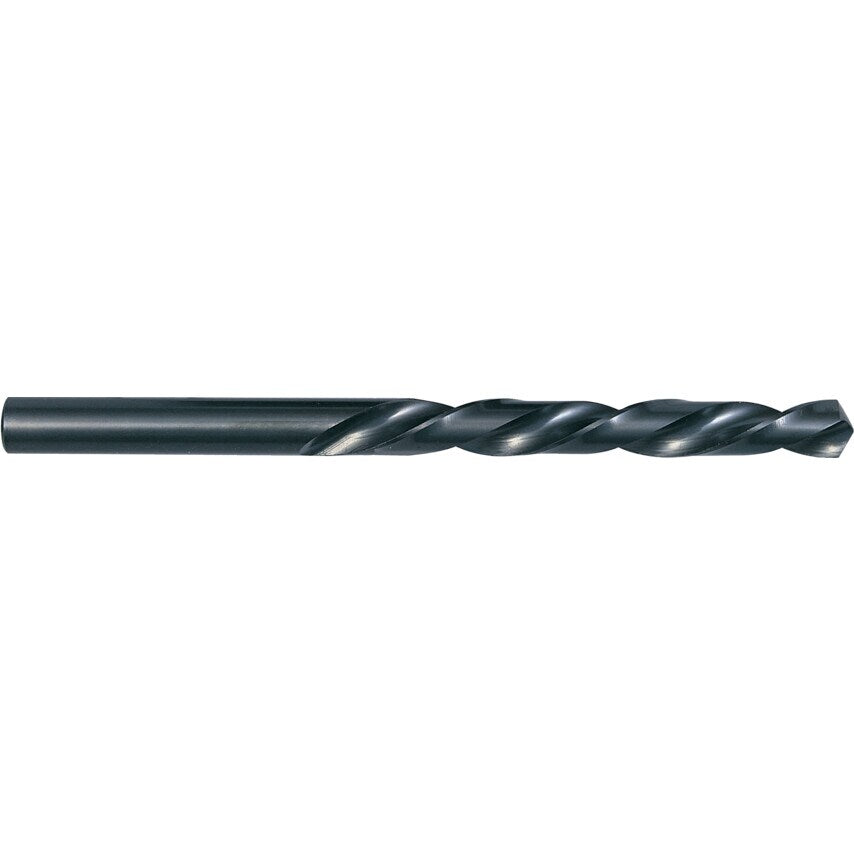

A1211 12.20mm S/S Jobber Drill

General purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Made from high speed steel with a black oxide coating for excellent heat and wear resistance during applications. Features and Benefits Made from high speed steel for increased rigidity and strength Black oxide coating for greater heat and wear resistance Specifications Point angle: 118 Tolerance of diameter: h8 Tolerance of shank: f11 Black finish (W-Finish), up to 3.00mm bright finish BS 328/DIN338RN Typical Applications Steels Cast steels Grey cast iron Malleable cast steel Cast iron Nickel Brass Aluminum alloy Graphite

Coolant Delivery	External
Point Angle	118\u00b0
Shank Diameter Tolerance	F11
Web Thickness	Standard
Cutting Direction	Right Hand
Drill Diameter Tolerance	H8
Finish/Coating	Black Oxide
Product Type	Jobber Drills
Size	12.2mm
Flute Construction	Ground flutes
Helix Type	Normal Helix
Series	A1211
Flute Type	Spiral
MFR Part No.	5058599
Material	HSS
Number of Flutes	2
Standards Met	BS 328 | DIN 338
Drill Diameter	12.2mm
